High Voltage Industrial Commercial Energy Storage Solution System Bess Eth IP54


229KWH 100KW Off Grid Solar Power System LiFePO4 Battery BESS ESS Energy Storage System


Product Description


SD-100/200 is a energy storage device with integrated battery, inverter, EMS, fire protection, electric energy measurement ,cloud operation and maintenance platform specially developed for industrial and commercial fields, which can be plug-and-play, easy-installed.

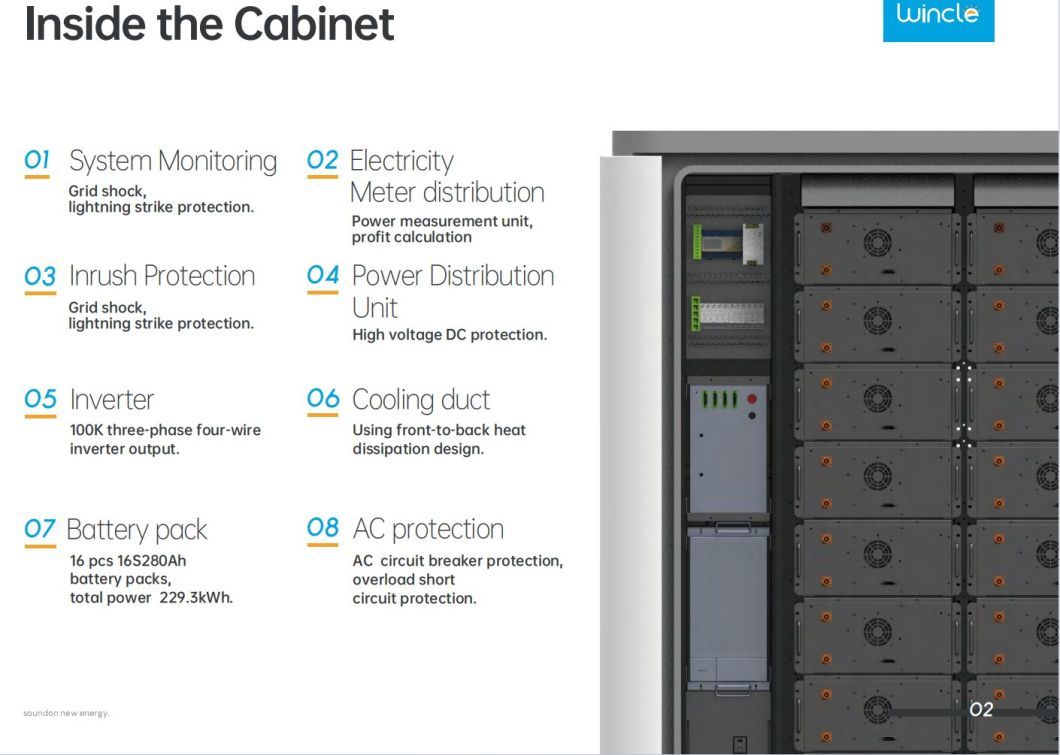

1. Inrush Protection,Grid shock, lightning strike protection.

2. Electricity Meter distribution Power measurement unit, profit calculation.

3. Power Distribution Unit High voltage DC protection.

4. Inverter :100K three-phase four-wire inverter output.

5. Cooling duct Using front-to-back heat dissipation design.

6. Battery pack 16 pcs 16S280Ah battery packs, total power 229.3kWh.

7. AC protection AC circuit breaker protection, overload short circuit protection.

8. System Monitoring System operation data and status monitoring.


No.ItemParameters
AC parameters
ModelSD-100/200
1Rated229kWh
2Rated power100kW
3AC Ethernet

Three phase four wire

4Reactive PowerPower factor -0.95 ~ +0.95 adjustable
Grid-connected operation parameters
5Rated grid voltage380 V(AC315V/AC290V)
7Available grid voltage±15%
8Rated grid frequency50 Hz
9Available grid frequency47.5 Hz~51.5 Hz
10
  • Total current distortion

≤5%
11Power factors≥0.98(rated power)
12
  • Charge-discharge conversion time

≤100 ms
13

connected

and off-grid switching time

≤50 ms
Off-grid operation parameters
14Rated input voltageAC380 V/(AC315V/AC290V)
15Output voltage deviationAC380 V(AC315V/AC290V)±5%
16Output voltage unbalance≤5 %
17Output voltage distortion≤3%( linear load)
18Rated output frequency49.5 Hz~51.5 Hz
System parameters
19system efficiencypower efficiency ≥ 95%, energy efficiency≥ 85%
20Noise<65 dB( away from system 1M )
21Protection LevelIP54
1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess
1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess
1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess
Conpany Brief Introduction

Soundon New Energy is an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery.

Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.
Soundon New Energy industrial park now covers 2 million
m2 ,with the registered capital as USD
496.66 million and the total investment as USD 1.57 billion. Now We have 300 engineers covering the filed of cell designing, BMS, electrical engineering and structural designing.
Soundon has passed ISO9000-2015, ISO14001-2015 and IATF16949-2016.

1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess
1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess
1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess
Product Description
Our Certificates1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess
R&D sources


The technical laboratory testing is able to perform test independently, finish physical and chemical analysis, and another projects test and data analysis accurately, and issue supported technical report.

We have created a well-organized environment of research and development. With a total of 2000 m2of laboratory space, the factory is equipped with more than 200 high-tech machines, apparatuses and equipments. Through our years' efforts, we have gradually developed to become the leading manufacturer of lithium ion battery
1mwh 3.44mwh 3mwh Bess off Grid High Voltage Industrial Commercial Energy Storage Solution System Bess

FAQ
1. The factory covers an area 20,000 m2, have a series of automatic equipment& semi-automatic equipment, production capacity has reached 300,000pcs/day.
2. Professional R&D center: to cooperate with the specification, proofing process, and free samples, OEM and ODM are warmly welcomed.

3. Quality assurance: Using high-quality material and build a comprehensive quality control system from parts to finished products. Importantly 100% production inspection.
4. Most of our sales and technical team has rich lithium battery experiences of 10-15 years.

5. ISO9001 certified factory: passed ISO9001:2015 inspection, strictly control the working environment.
6. Low MOQ: Strength factory, strong production capacity, most of the battery models have stock, can be fast dispatched.
7. Lithium battery certification with CE/CB/IEC62133/KC/PSE/ROHS/ERRCS/UN38.3, etc.
8. Warranty 10-15 years.
