    High Voltage 20FT Container 5MWh ESS For Grid-Side Connect And Back-Up Power

    Ask Lasest Price
    Brand Name : Soundon New Energy
    Model Number : Turtle 5
    Certification : IEC/EN 62477, NFPA855, IEC/EN 62619, IEC/EN 60730, IEC/EN 63056, UL 1973, UL 9540A
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    High Voltage 20FT Container 5MWh ESS For Grid-Side Connect And Back-Up Power

    High Voltage 20FT Container 5MWh ESS For Grid-Side Connect And Back-Up Power

    Product description


    This 5MWh system consists of battery clusters (10 clusters, each cluster has 8 packs ) , PDU, DC combiner box, BMS, thermal management system, fire extinguishing system, etc. The system has external communication functions and can transmit data with external supporting HMI, PCS, fire protection and other equipment, and can continue to operate safely and stably for a long time.


    Product Spec


    No.ItemSpec
    1

    System

    Nominal Capacity(kWh)5016
    2Max cycle efficiency>89%
    3Protection levelIP54
    4Auxiliary power supplySelf-powered /externally powered
    5Working humidity range0~95%
    6Working temperature range-15~50ºC
    7Max working altitude(m)4000
    8Cooling methodSmart liquid cooling
    9Fire extinguishing configurationAerosol fire protection, temperature detection, smoke detection
    10Communication protocolRS485/CAN/以太网
    11Weight(T)≤43
    12Container size ( L × W × H)6058×2438×2896mm
    13

    DC parameter

    Max DC voltage1497.6V
    14Min DC voltage1164.8V
    15DC side rated current1884A
    16DC side maximum current2154A



    Product Features
    • Capable of parallel/offline operation according to demand
    • Modular design, customizable energy storage bidirectional inverter units can be added according to requirements
    • Customized Battery management system provides complete measurement and protection functions
    • Private cloud dispatching is adopted, and the operation is combined with the local solidification
    • Fault classification processing mechanism, responding to preset fault scenarios strategy, and the operation strategy and firmware are updated remotely
    • DC grid connection logic blocking control to ensure multi cluster battery grid connection operation
    • Suitable for responding to grid load control and reducing grid peak load
    • Suitable for regulating electricity load and reducing enterprise electricity expenses
    • Fast engineering installation, low operation and maintenance costs

    Application

    Island microgrid;
    Power stations with access to new energy or distributed energy;
    Small-scale thermal power peak regulation and frequency modulation power station area;
    Outdoor temporary large load center;
    Factories, enterprises, business centers, etc. with large load fluctuations;
    Emergency mobile power station.

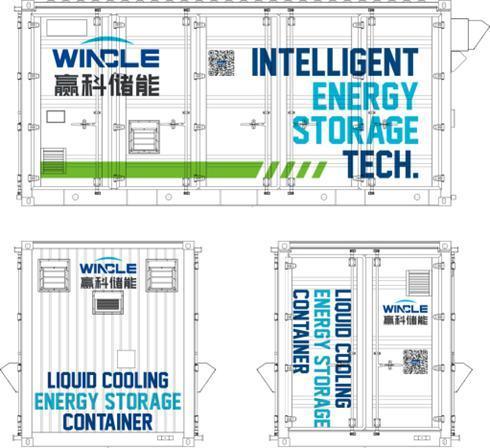

    Structural Dimensions

    20FT Container 5mwh Energy Storage System for Distributed Energy Storage System
    20FT Container 5mwh Energy Storage System for Distributed Energy Storage System
    20FT Container 5mwh Energy Storage System for Distributed Energy Storage System


    Applications

    20FT Container 5mwh Energy Storage System for Distributed Energy Storage System
    20FT Container 5mwh Energy Storage System for Distributed Energy Storage System
    Company introduction


    Soundon New Energy is invested by Sound Group and Hunan Chasing Financial. It's an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery. Our products are widely used in public lives, military affairs, aviation and transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.
    Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.
