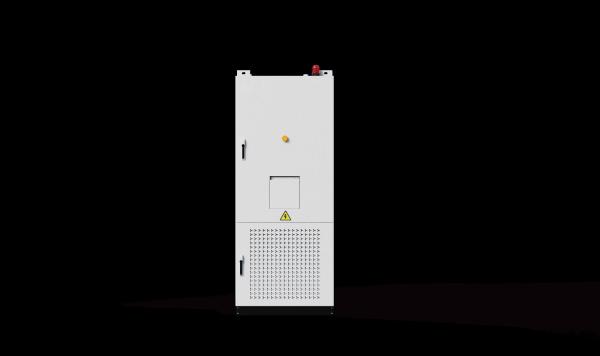

    Liquid cooled 215kwh C&I Energy Storage cabinet 768V 280Ah system for solar PV

    Ask Lasest Price
    Brand Name : Wincle
    Model Number : SD-215
    Certification : MSDS, UN38.3, CE, CB, IEC 62619
    Delivery Time : 25-30 working days
    • Product Details
    • Company Profile

    Liquid cooled 215kwh C&I Energy Storage cabinet 768V 280Ah system for solar PV


    Liquid cooled 215kwh C&I Energy Storage cabinet 768V 280Ah system for solar PV


    Product introduction


    Star 215 contains five battery packs and one battery controller, modular power conversion system, BMS system, liquid Cooling Type system and Fire protection system. The battery cell is the smallest basic unit. BMS mainly contains BCU, BMU, EMS, responsible for collecting cell, electric box and electric cabinet information, and communicate with other devices. And provide local energy management services. The liquid Cooling Type system is responsible for the Cooling Type and heating of the entire electrical cabinet system. The fire control system is responsible for the fire status detection and fire prevention of the entire electrical cabinet system.


    Cabinet Spec



    DC

    Battery TypeLFP
    Cell Configurations1P240S
    Rated Capacity (Ah)280
    Rated Energy (KWh)215
    Rated Voltage (V)768
    Rated Power (KW)100
    Rated Charge/Discharge Rate0.5C
    Voltage Range (V)672 864
    Standard Charge/Discharge Current (A)140/140
    Cooling TypeLiquid Cooling

    Coolant

    Ethylene glycol: aqueous solution


    Liquid cooled 215kwh C&I Energy Storage cabinet 768V 280Ah system for solar PV

    Life Cycles6000
    Fire SuppressionNOVEC1230/FM200, optional

    Detector

    Smoke, heat & flammable gas

    detectors


    AC

    Rated AC power100kW
    AC overload Capacity(KVA)1.1 times long-term, 1.2 times 1min
    Connection ModeThree-Phase Four-Wire System
    On-grid AC Voltage380V -
    On- grid Frequency50Hz/60Hz±2.5Hz
    Total Harmonic Distortionfull load)
    Power Factor-0.99~+0.99
    DC component of current

    Liquid cooled 215kwh C&I Energy Storage cabinet 768V 280Ah system for solar PV

    Charge discharge conversion time100ms
    Max. Conversion Efficiency

    Liquid cooled 215kwh C&I Energy Storage cabinet 768V 280Ah system for solar PV

    Cooling TypeForced air Cooling

    System

    Charging Operating Temperatures Range (°C)-30°C~55°C(>45°C, derating)
    Discharging Operating Temperatures Range(°C)-30°C~55°C(>45°C, derating)

    Storage

    Temperatur e Range

    Short term (<1month)(°C)-30°C 60°C

    Long term (<1year)(°C)


    0°C 35°C

    Noise

    Liquid cooled 215kwh C&I Energy Storage cabinet 768V 280Ah system for solar PV

    Dimensions(W*D*H)(mm)935*1250*2340mm
    Weight(T)2.7±0.1
    Anti-corrosionC4/C5 (optional)

    IP Rating

    Battery compartment: IP65

    Electrical compartment: IP54

    Relative Humidity0- condensing)
    Standard Altitude(m)

    Liquid cooled 215kwh C&I Energy Storage cabinet 768V 280Ah system for solar PV

    Efficiency

    Liquid cooled 215kwh C&I Energy Storage cabinet 768V 280Ah system for solar PV

    Communication InterfaceCAN, Ethernet
    Communication ProtocolModbus TCP/RTU

    Operation Mode

    Peak load shiftingYes
    Demand controlYes
    Economic operation modeYes
    Reactive power regulationYes
    Power grid dispatch connectionYes
    Remote dispatch connectionYes
    Local data storageYes
    Anti-refluxOptional

    Certificatio n standards

    BMSUL60730, GB/T34131-2017

    Battery

    GB/T36276-2018, IEC62619,

    UL1973, UL9540A


    PCS

    CE;

    EN50549-1:2019+AC.2019-04; CE1 0-21; CE10-16;

    NRS 097-21-1: :2017;

    EN50549+Deviations of Netherlands; C10/11: 2019;

    GB/T 34120;

    GB/T 34133


    System composition


    Application


    Island micro grid, Power stations with new or distributed energy access;

    Small fire peak and frequency modulation power station

    Outdoor temporary heavy duty center, Load fluctuations of the factory,

    enterprise, business center etc.
