Overview
Product description

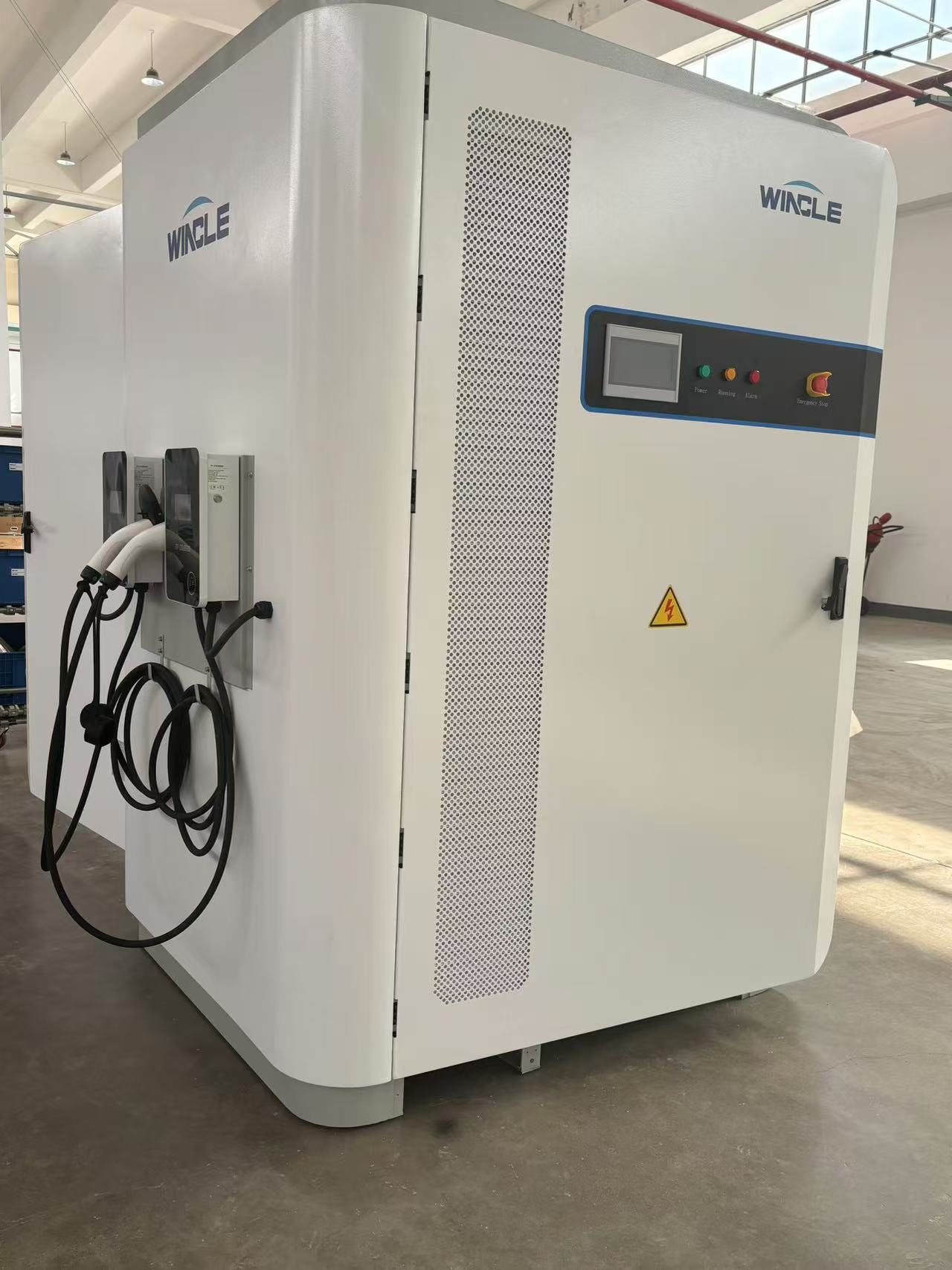

High Intergrated 192KWh With 120KW Inverter Liquid C&I ESS For
Charging Station And City Ess
SD-CL192pro is an integrated plug-and-play, easy install .liquid cooled energy
storage system. The system is supplied with a built-in
inverter,EMS, fire protection, and energy measurement unit, with a
built-in cloud operation and maintenance platform as standard.
Specially developed for both industrial and microgrid projects.Product Parameters
Outdoor energy stsorage cabinet parameters
| No. | Category | Name | Parameter |
| 1 | System parameters | Rated energy (kWh) | 96 | 144 | 192 |
| 2 | Rated power (kW) | 60 |
| 3 | Protection level | IP54 |
| 4 | Auxiliary power supply | Self-powered/externally powered |
| 5 | Working humidity range | 10%～90% |
| 6 | Working temperature range (℃) | -30～55(＞45℃ derating) |
| 7 | Cabinet size (width × depth × height mm) | ( 1750 ±10)×( 1435 ±10)×( 2392 ±10) |
| 8 | Weight (kg) | 1900 ±100 | 2225 ±100 | 2 5 50±100 |
| 9 | Maximum working altitude (m) | 1500 |
| 10 | Cooling method | Smart liquid cooling |
| 11 | Fire extinguishing | Aerosol firefighting |
| 12 | Communication | Ethernet |
| 13 | Protocol | MODBUS TCP/IP |
| 14 | Connection | Three-phase four-wire |
| 15 | AC parameters | Rated charge and discharge power (kW) | 60 |
| 16 | Maximum charge and discharge power (kW) | 72 (60S 25℃) |
| 17 | Rated charge and discharge current (A) | 87 |
| 18 | Rated grid voltage (V) | 400 |
| 19 | Allowable grid voltage range (V) | 300～440 |
| 20 | DC parameters | Maximum DC voltage (V) | 1000 |
| 21 | Minimum DC voltage (V) | 150 |
| 22 | DC voltage operating range (V) | 150 ～1000 |
| 23 | DC side maximum current (A) | 180 |
Applicaition chart
Features:
Full functioning
Storage and charging , adaptable to various scenarios;
Modular design, MPPTT , STS , ATS can be matched as desired
Intelligent and friendly
Power grid friendly, active support, quick response;
Intelligent algorithm, efficient operation and extended lifespan
Safe and reliable
Intelligent management, rapid fault diagnosis;
Comprehensive monitoring, multi-level intelligent protection
Flexible and convenient
96-192kWh , flexible ;
Easy to install and operation.
Applications
Company Profile
An Expert Maker of LiFePO4 and NCM battery for Electric vehicle and
Energy Storage system
Soundon New Energy established in 2011, which is invested by Sound
Global (stock :HK00967) and stock jointed by Sound Environment
(SZ000826). With a registered capital of $392 million , is an
enterprise engage in technology innovation, product design and
marketing of battery cathode materials, high capacity lithium ion
batteries .
Our products are widely used in public lives, military affairs,
aviation and transportation, energy, communication and information
etc. Soundon has lithium-ion cathode material department,
lithium-ion battery department and electric vehicle department,
each department is in independent operation.Soundon New Energy has
the ability of production 50,000 tons NCM&LiFePO4 battery
Cathode material, 6 GWh high capacity li-ion battery every year.
Soundon has passed ISO9000-2015, ISO14001-2015 and IATF16949-2016
Our advantage
Soundon industrial park covers an area of 2 million square meters,
with ten automatic production lines, all production line applied
advanced equipment and famous brand facilities (most of R&D and
QC instrument were imported from the US, Japan and UK) which are
manned by 1,000 workers.
The technical laboratory testing is able to perform test
independently, finish physical and chemical analysis, and another
projects test and data analysis accurately, and issue supported
technical report.
In fact, we are very proud of working with several famous companies
such as DANA( American) ,SAFT(France), which have become satisfied
with our services and high-quality products.
R&D sources
The technical laboratory testing is able to perform test
independently, finish physical and chemical analysis, and another
projects test and data analysis accurately, and issue supported
technical report.
We have created a well-organized environment of research and
development. With a total of 2000 m2of laboratory space, the factory is equipped with more than 200
high-tech machines, apparatuses and equipments. Through our years'
efforts, we have gradually developed to become the leading
manufacturer of lithium ion battery
QC introduction
our company Obtained ISO9001-2008 ,ISO 14001 and ISO/TS16949
certification, applied the financial ERP systems and the modern
administration management system and passed all kinds of the
quality standards.
Our factory has a complete Q.A. & Q.C.system. We own authorized
sets of analyzing instruments with high efficiency and high
sensitivity.
Everyone are strives to meet or exceed the expectations of
customers, and aims to constantly improve both quality and service
of our product, to achieve much higher level on different aspects
of company in the long run.
We also have framed a well defined quality management system under
the supervision of quality inspectors.
The Quality System consists of 5 main parts below:
1. Quality Training
2. Incoming Quality Control
3. In-process Quality Control
4. Reliability Testing
5. Outgoing Quality Control
Certifications
Soundon have a full-scale produce qualification such as ISO
9000:2015, ISO 140001:2015, ISO/TS 16949 and OHSA18001-2007
certification. Mostly of lithium battery products gain the national
and safety explosion-proof and export permit. like CE, CB, UN38.3
and RoHS ,R100 international certification, Soundon aims to be your long-term
partner, ensures product quality, on-time delivery, competitive
price and user's equity!
FAQ
Why choose us?
1. The factory covers an area 20,000 m2, have a series of automatic equipment& semi-automatic equipment,
production capacity has reached 300,000pcs/day.
2. ISO9001 certified factory: passed ISO9001:2015 inspection,
strictly control the working environment.
3. Quality assurance: Using high-quality material and build a
comprehensive quality control system from parts to finished
products. Importantly 100% production inspection.
4. Professional R&D center: to cooperate with the
specification, proofing process, and free samples, OEM and ODM are
warmly welcomed.
5. Low MOQ: Strength factory, strong production capacity, most of
the battery models have stock, can be fast dispatched.
6. Lithium battery certification with
CE/CB/IEC62133/KC/PSE/ROHS/ERRCS/UN38.3, etc.
7. Most of our sales and technical team has rich lithium battery
experiences of 10-15 years
