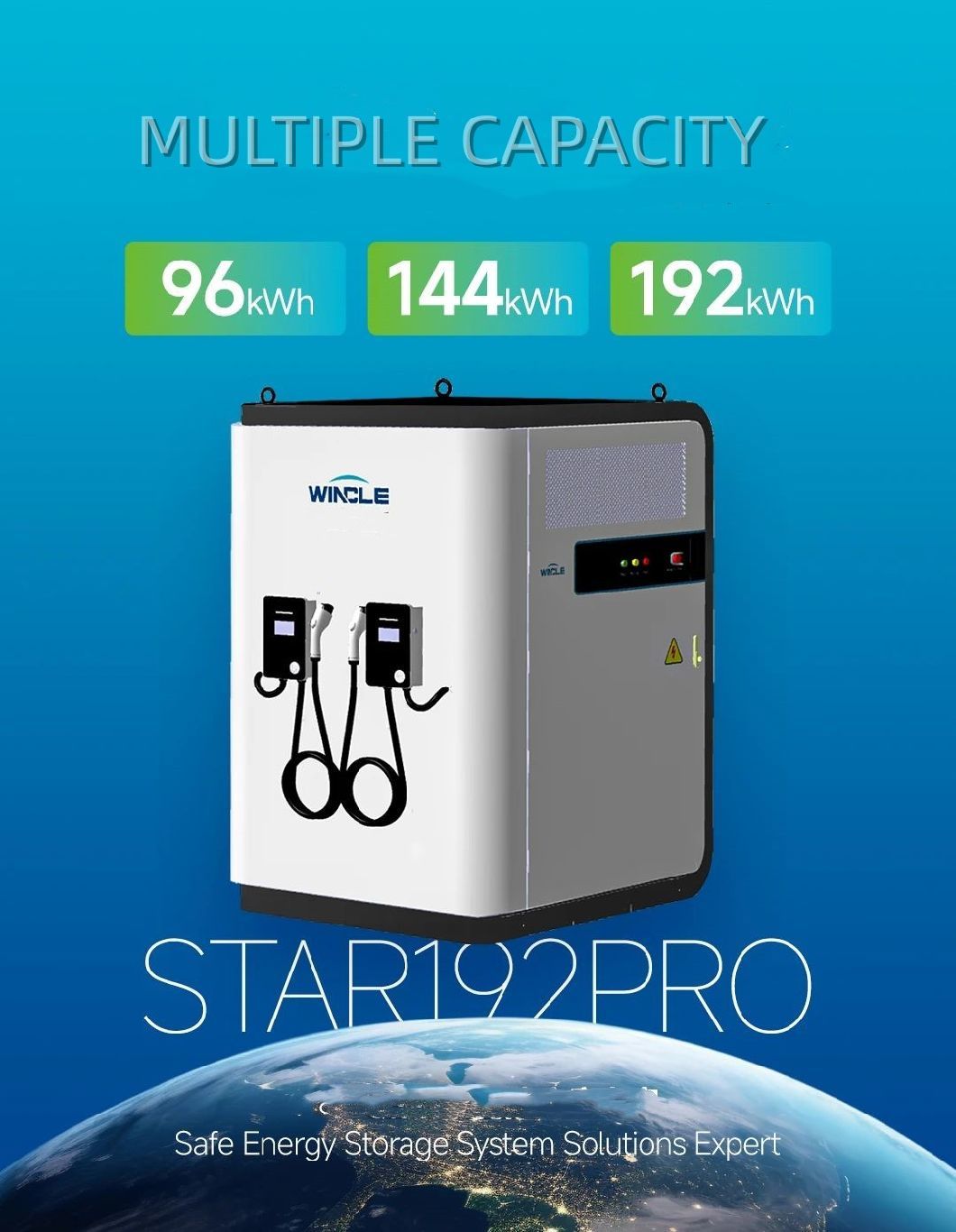

All in one 144.7KWh liquid cooling energy storage system cabinet
for
SD-CL192pro is an integrated plug-and-play, easy install .liquid
cooled energy storage system. The system is supplied with a
built-in inverter,EMS, fire protection, and energy measurement
unit, with a built-in cloud operation and maintenance platform as
standard. Specially developed for both industrial and microgrid projects.Product Parameters
Outdoor energy stsorage cabinet parameters
| Product model | Stars CL192Pro |
| Battery parameters | |
| Battery cell | Lithium Iron Phosphate |
| System configure | 1P96S | 1P144S | 1P192S |
| DC battery capacity @ B O L ( kW h ) | 96.46 | 144.69 | 192.92 |
| Voltage Range ( V ) | 240~350.4 | 360~525.6 | 480~700.8 |
| Cabinet Weight kg ) | 2000 | 2400 | 2700 |
| Battery Cabinet ( W * H * D ) ( mm ) | 1600*2200*1435 |
| IP grade | IP54 |
| Corrosion-proof Grade | C4H |
| Working Humidity range | 10%~90% |
| Operation Temp ( ºC ) | -30~55 |
| Maximum working altitude | 1500 |
| Battery cabinet cooling method | liquid cooling |
| Fire safety configuration | Aerosol fire protection, temperature, smoke detection |
| communication | Ethernet |
| Protocol | MODBUS TCP/IP |
| Standards compliant | UN38.3 , IEC |
| Standard configuration | PCS , DCDC |
| Optional | MPPT , STS , ATS |
AC parameters
| Product number | Stars CL192Pro |
PCS parameters (standard configuration) | AC side (grid-connected) | |
| Rated AC output power ( kW ) | 60 |
| Maximum AC output power | 72KW@1min |
| Maximum AC current ( A ) | 103 |
| Rated AC voltage ( V ) | 400 |
| AC voltage range ( V ) | 300~440 |
| Rated grid frequency/ Grid frequency range (Hz) | 50/60 |
| AC current harmonics | <3% ( under rated power) |
| Power factor adjustable range | -1~1 |
| AC side (off-grid) | |
| Rated AC voltage ( V ) | 400 |
| AC voltage harmonics | <3%( linear load) |
| Quota grid frequency, grid frequency range (Hz ) | 50/60 |
| Rated AC output power ( kW ) | 60 |
| Maximum AC output power ( kW ) | 72 |
| efficiency | |
| maximum efficiency | 0.988 |
Applicaiton chart
Cell parameter
314Ah large capacity prismatic battery cell
| NO. | Name | Product Specification | Condition |
| 1 | Cell capacity | 314Ah | 0.5C constant current at 25±2ºC charge to 3.65V then constant
voltage 3.65V charge till charged current declines to ≤0.05C |
2 |
Working voltage | 2.5~3.65V @0ºC<T<55ºC
2.0V~3.65V@-30ºC<T≤0ºC |
|
| 3 | Battery AC internal resistance | ≤0.30mΩ | AC 1kHz |
4 | Working temperature
(charging) |
0~55ºC |
|
5 | Working temperature
(discharging) |
-20~55ºC |
|
| 6 | Weight | 5.8±0. 3kg | |
| 7 | Standard discharging power | 502.4W | 25±2ºC |
8 | Max Continuous Discharging
Power |
502.4W |
25±2ºC |
| 9 | Cell dimension | 174.1+1.0/-2.0×72+3.0/-1.0×
207.2±1mm | |
Battery Module parameters
NO. |
Name |
Product specification |
Condition |
| 1 | Configuration | 1P48S |
1P48S |
| 2 | Nominal voltage | 153.6V | N.A |
3 |
Voltage range |
120~ 175.2V | Cell protection 2.5V
to 3.65V |
| 4 | Nominal energy | 48.2kWh | 25ºC±2, 0.5C |
5 | Standard charge & discharge current |
157A |
N.A |
6 | Max continuous charge & discharge current |
201A |
N.A |
| 7 | Installation mode | Plug-in type | N.A |
8 | Charging temperature |
0~55ºC |
N.A |
9 |
Discharging temperature |
-20~55ºC |
N.A |
| 10 | Cooling mode | Liquid cooling | N.A |
| 11 | Fire extinguishing | Aerosol | |
| 12 | Battery box size (W x D x H) | 1095±5/790±5/246±5mm | N.A |
| 13 | Pack weight | ≤330Kg | N.A |
Features:
Full functioning
Storage and charging , adaptable to various scenarios;
Modular design, MPPTT , STS , ATS can be matched as desired
Intelligent and friendly
Power grid friendly, active support, quick response;
Intelligent algorithm, efficient operation and extended lifespan
Safe and reliable
Intelligent management, rapid fault diagnosis;
Comprehensive monitoring, multi-level intelligent protection
Flexible and convenient
96-192kWh , flexible choice;
Easy to install and easy to operate.
