81ah Rated Capacity Nmc Special Vehicle Battery System for Electric Trailers and Truck

29kwh Special Vehicle Battery With High Current Rating ,Fast Charge For Electric Trainlers And Truck

Specifications:

Battery ChemistryNCM
Cell TypePouch
Cell Rated voltage3.6 V
Cell Rated Capacity13.5Ah
Cell Parallel and Series6P100S
Battery pack rated Voltage360V
Battery pack rated Capacity81Ah
The total energy of the battery29.160kwh
Battery box number1 Battery box
Battery charge / discharge currentCharging: rated current: 40A, the peak current: 320A is (regenerate current)
Discharge: rated current: 120A, peak current: 480 A
BMS mounting positionInside Battery box
Current directionDischarge "-", charging "+"
Low VoltageBMS power supplyLead Acid
Continuous power
BMS supply voltage+ 12V
WakenCharge /DischargeON
Current DetectionShuntsUsing the FL-2 400A / 75mV
current sensorNot Apply



Soundon Electric vehicle cells :

Soundon Cell List
ModelSEPNi8688190-13.5Ah
(Fast charging/discharging)
SEPNi8688190P-17.5AhSEPNi11217127P-32AhSEPNi11100302P-50Ah
Rated Capacity(Ah)13.517.53250
Typical capacity(Ah)14.217.932.9651
Rated Voltage(V)3.63.653.653.7
Internal Resistance(mΩ)≤2.5≤3.5≤2.0≤1.5
Thickness MAX(mm)8.68.711.511.8
Width MAX(mm)9292217101
High MAX(mm)195195127303
Power(Wh)48.663.875116.8185
Energy Density(Wh/Kg)178220217252
Energy Density(Wh/L)315409368512
High Temp performance
(55ºC)
≥100%≥100%≥100%≥100%
Low Temp Performance
(-20ºC)
≥75%≥75%≥75%≥75%
Self Discharge (RT28d)≤3%≤3%≤3%≤3%
2C Discharge/ 1C≥97%≥97%≥97%≥97%
3C Discharge/ 1C≥95%≥95%≥95%≥95%
C-Rate 2C CC/1C (CC+CV)≥88%///
C-Rate 3C CC/1C (CC+CV)≥85%///
C-Rate 4C CC/1C (CC+CV)≥82%///
Time using of Charge to 80% SOC (min)≤15///
Power Density (W/kg)@ 50%SOC 25ºC 30S≥1500///
Cycle (RT)3C/1C≥30001C/1C≥25001C/1C≥2500
Mass production planningAlready Mass ProductionAlready Mass ProductionAlready Mass ProductionAlready mass production

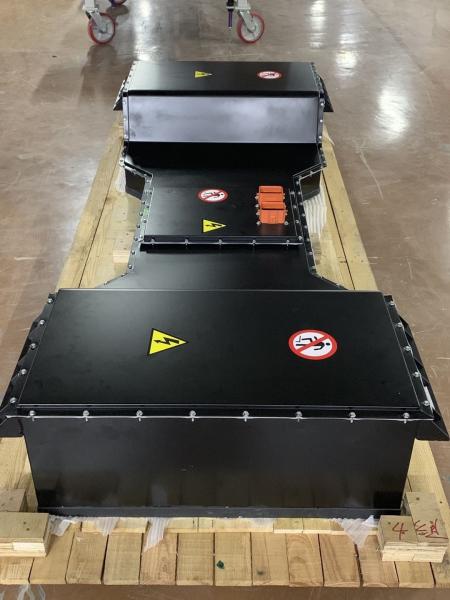

Battery pack picture
29kwh with High Energy Density Nmc Special Vehicle Battery System for Electric Trailers and Truck


Soundon lithium battery feature

1.Unique lithium battery of Lamination Technology with prismatic case

2.International Product certification : UN38.3,CB ,CE, Rohs

3.Company Quality Approvals : ISO9001,ISO14001,TS16949 quality system standard approved

4.with ERP system can well control the cost and quality
29kwh with High Energy Density Nmc Special Vehicle Battery System for Electric Trailers and Truck

Battery module process flow

29kwh with High Energy Density Nmc Special Vehicle Battery System for Electric Trailers and Truck
