ECE R100 Special Vehicle Battery 120.96kwh Lithium-Ion Battery Pack for Electric Sweeper Truck

ECE R100 Special Vehicle Battery 120.96kWh For Electric Sweeper Truck , Sanitation And Garbage Truck


ContentParameter
Voltage474V---663.6V(335.8V)
Energy(KWh)23±2ºC,1/3C121.1kWh
Capacity(Ah)23±2ºC,1/3C210Ah
CellSEPNi8688190P-17.5Ah
Configuration12P158S
Recommended ambient temperature range(ºC)Discharge-20~55ºC,Charge 0~55ºC
Environmental Relative Humidity Recommended5%~95%
Storage temperature

-20~25ºC(3-6months,50%SOC)

-20~45ºC(1-3months,50%SOC)

-20~60ºC(less than 1 month,50%SOC)

Maximum Continuous Discharge Current≤280A
Maximum Continuous Charging Current≤100A
Insulation resistance factory test value(Ω)≥20MΩ
Waterproof Grade of Battery BoxIP67
Cooling modeNatural cooling


Battery Module


Cell Model8688190-17.5Ah
Model Type4P1S
Model Size (H*W*T)232.5× 96.6× 37(mm)

Rated Capacity Module


70Ah

Nominal Voltage Module


3.65V
charge and discharge current1C
The Module Of Energy Density195Wh/kg

Battery system
ECE R100 Special Vehicle Battery 120.96kwh for Electric Sweeper Truck, Sanitation and Garbage Truck
Battery cell Spec


Capacity voltage: 3.6V17.5Ah 1C discharging (25±2 degree)


Charging end of voltage :4.2V


Standard charging and discharging current :0.5C


max continuous charge and discharge current :1C


max pluse charging current :1.5C(15-45 degree) < 30S


max pluse discharging current :3C (15-45 degree) < 30S


Working temperature : Charging:-10~45 degree


Discharging :-20~55 degree


Battery pack process flow
ECE R100 Special Vehicle Battery 120.96kwh for Electric Sweeper Truck, Sanitation and Garbage Truck


Applicaiton

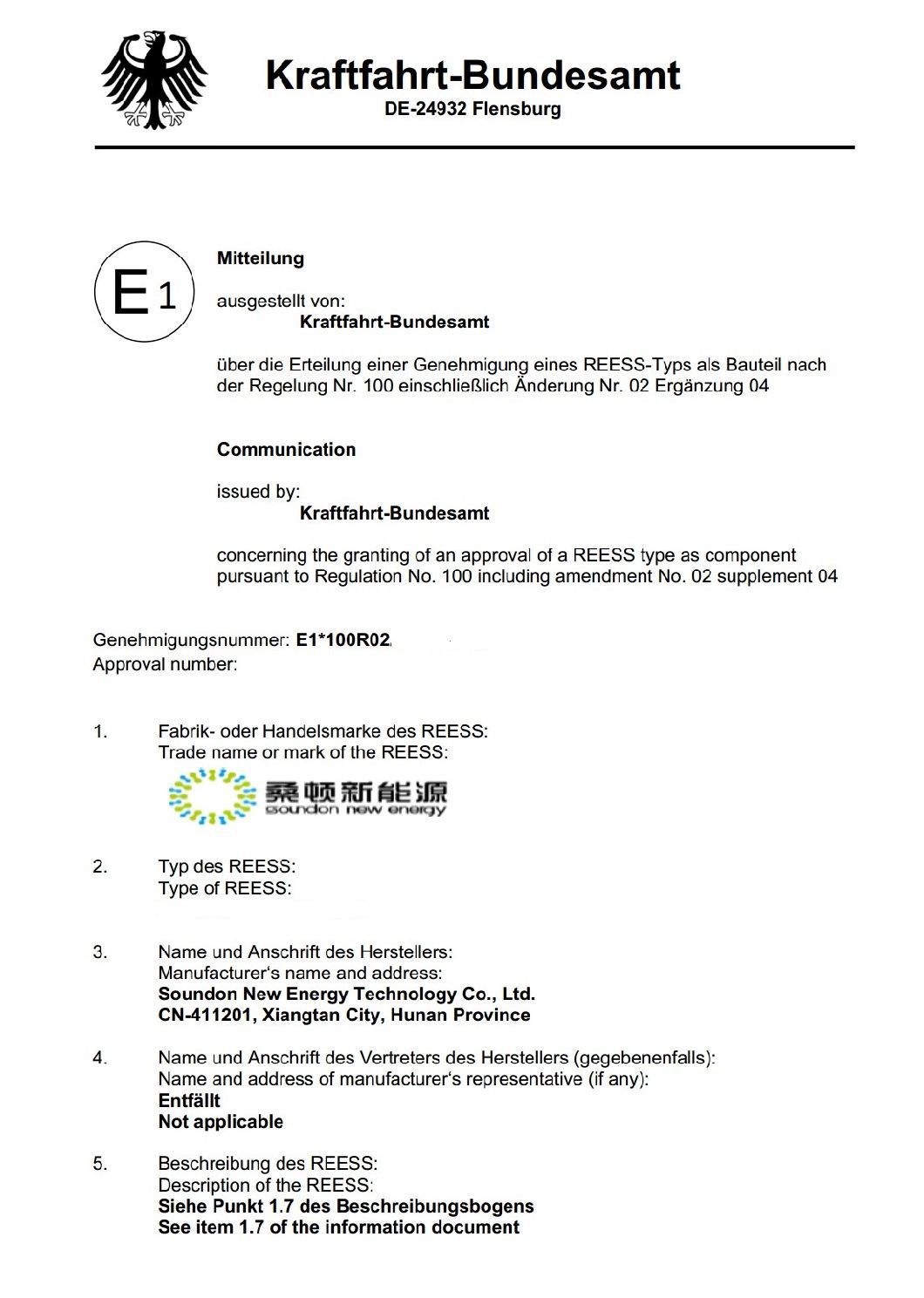

This 121.1kwh battery pack already got the UNECE R100 certificate , and already widely used for electric sanitation and garbage truck ,sweeper truck in European market .


ECE R100 Special Vehicle Battery 120.96kwh for Electric Sweeper Truck, Sanitation and Garbage Truck
