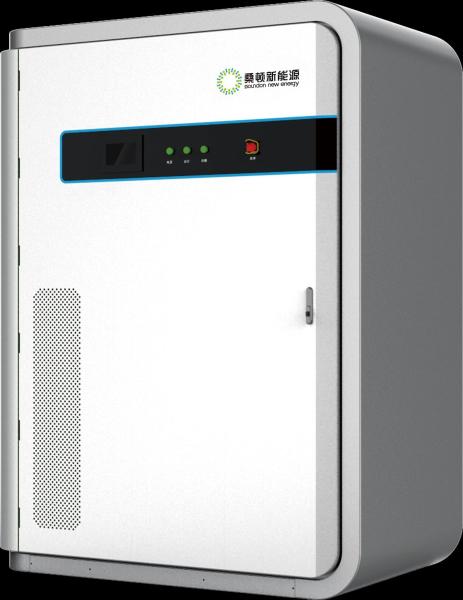

    Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply

    Ask Lasest Price
    Brand Name : Wincle
    Model Number : star 229
    Certification : MSDS, UN38.3, CE, CB, IEC 62619
    Delivery Time : 25-30 working days
    • Product Details
    • Company Profile

    Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply

    Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply
    Product Spec
    parameter
    AC parameters
    ModelSD-100 / 200
    Rated Capacity200 kWh
    rated power1 00 kW
    AC access methodThree-phase four-wire (three-phase three-wire)
    isolation method/
    Reactive rangePower factor -0.95 ~ +0.95 adjustable
    Grid-connected operating parameters
    Rated grid voltage380V (AC315V/AC290V)
    Allowable grid voltage±15%
    Rated grid frequency50Hz
    Allowable grid frequency47.5Hz~51.5Hz
    Total Current Distortion Rate≤5%
    power factor≥0.98 (rated power)
    Charge and discharge conversion time≤100ms
    and off-grid switching time≤50ms
    Off-grid operating parameters
    Rated output voltageAC380V/(AC315V/AC290V)
    Output voltage deviationAC380V(AC315V/AC290V)±5%
    Output voltage unbalance≤5%
    Output voltage distortion≤3% (linear load)
    Rated output frequency49.5Hz~51.5Hz
    System parameters
    system efficiencyPower efficiency ≥ 95%, energy efficiency ≥ 85%
    noise<65 dB (at 1 m from the system)
    degree of protectionIP54
    Allowable operating ambient temperature-20℃~+55℃
    cooling methodForced air cooling
    allowable relative humidity0~95% non-condensing
    sizeW1500*D1300*2300
    surveillance system
    Communication Interfaceethernet
    communication protocolIEC60870-5-104, Modbus tcp, IEC61850-9-2+goose
    Features
    • Integrated integration, high integration, easy design, construction, commissioning and operation and maintenance;
    • Modular construction, plug and play, short installation period, convenient operation and maintenance;
    • Intelligent monitoring, real-time online, intelligent monitoring and early warning, the system is safe and reliable;
    • Standardized expansion, strong scalability, can be combined with standard modules to expand products with different capacities according to needs;
    Application Cases

    This series is a cabinet power station energy storage system mainly for the following application fields:

    • Factories, enterprises, business centers, etc. with fluctuating loads
    • Island microgrid;
    • Power stations with access to new energy or distributed energy;
    • Outdoor temporary large load center;
    • Emergency mobile power station.

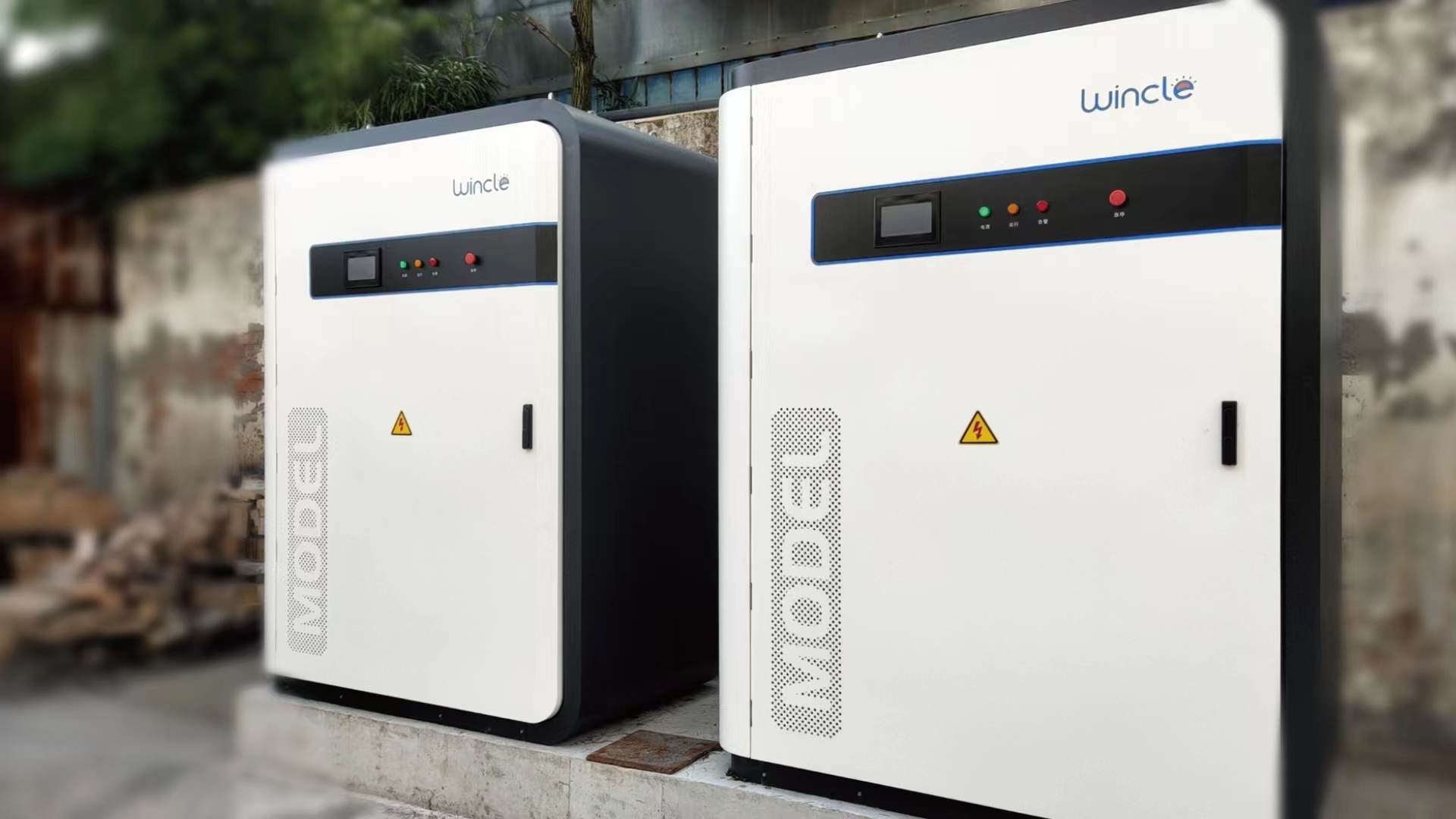

    Back up power supply for Waterworks plant
    Peak shaving and valley Filling For Copper Plant

    Company profile


    Soundon New Energy is invested by Sound Group and Hunan Chasing Financial. It's an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery. Our products are widely used in public lives, military affairs, aviation and transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.
    Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.
