    2P6S Lithium Battery Packs For Electric Vehicles 22.2V 100Ah SEPNi11100302P-50Ah

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : EV-019-22.2V/100Ah
    Certification : CE,ROHS,MSDS
    Price : Negotiation
    Supply Ability : 1000/day
    Delivery Time : 25-30days
    • Product Details
    • Company Profile

    2P6S Lithium Battery Packs For Electric Vehicles 22.2V 100Ah SEPNi11100302P-50Ah

    22.2V100Ah Battery Module with 260Wh/kg high energy density For Electric Vehicle Batteries


    VDA Battery Module specification:

    Item


    Specification


    Nominal Capacity

    100Ah ,1 C discharging(25±2℃)

    101.6Ah ,1/3C discharging(25±2℃)

    Typical Capacity

    102Ah ,1 C discharging(25±2℃)

    Minimum Capacity

    100Ah ,1C discharging(25±2℃)
    Nominal Voltage22.2V

    Charge Ending voltage

    max voltage 4.4V

    Discharge Ending Voltage

    0℃≤T(Temperature)≤55℃

    to single cell min voltage 3.0V

    -20℃≤T(Temperature)≤0℃

    to single cell min voltage 2.4V

    Standard Charging Method

    0.5C constant current charge to single cell max voltage 4.4V,then cut-off to current 0.05C with constant voltage charge

    Max. Constant Charging Current


    1C

    Max. Pulse Charging Current


    1.5C≤30S

    Standard Discharging Current

    25±2℃

    1/3C constant current discharge to single cell min voltage 3.0V

    Max. Constant Discharging Current

    1C

    Max. Pulse Discharging Current

    3C≤30S

    Operating environment

    Charging: 0℃~55℃, max.90%RH

    Discharging: -20℃~55℃, max.90%RH

    Module Weight

    10.3±0.3 kg

    Energy Density

    around215.0Wh/kg

    Battery cell sepcificaiton :


    Item

    Specification

    Nominal Capacity50Ah
    Nominal Voltage3.7 V

    Charge Ending Voltage

    4.4 V
    Impedance≤1.5 mΩ

    Cell Weight

    (Not include PCB)

    740g

    Superiority:


    Using high energy density NCM materials up to 260wh/kg .


    Battery cell is special design for electric vehicle which adopt the VDA standard to match any model battery pack ,and already mass production


    Passed the international certificate :UN38.3,MSDS,CE


    Battery package are comply with international export transpotation rules UN38.3 and dangerous package certificate.


    Battery Module List


    Battery cell MODE:SEPNi11100302P-50Ah
    Battery cell capacity Ah50Ah
    Configuration2P6S3P4S
    Dimension mm
    (H*W*T)
    355*151*108355*151*108
    Module Rated Capacity Ah/Wh100AH150AH
    Module Rated Voltage V22.2V16.8V
    Module Weight Kg10.3kg10.3kg
    Module Weight Wh/Kg215215

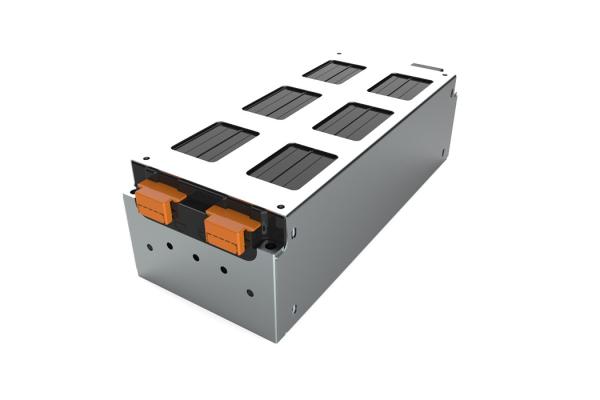

    Battery module :
