    Hino 103Kwh Special Vehicle Battery Support With SEA Drive 100 For Electric Step Van

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : SD-EV-394.2V262.5AH
    Certification : CE, MSDS, ROHS,UL
    Price : Negotiable
    Supply Ability : 50units / week
    Delivery Time : 30 working days after payment
    • Product Details
    • Company Profile

    Hino 103Kwh Special Vehicle Battery Support With SEA Drive 100 For Electric Step Van

    Hino 103Kwh Special Vehicle Battery Support With SEA Drive 100 For Electric Step Van,Tipper Truck


    contentParameter
    Voltage324V---453.6V(394.2V)
    Energy(KWh)23±2℃,1/3C103.4kWh
    Capacity(Ah)23±2℃,1/3C262.5Ah
    CellSEPNi8688190P-17.5Ah
    Configuration20P92S
    Recommended ambient temperature range(℃)Discharge-20~55℃,Charge 0~55℃
    Environmental Relative Humidity Recommended5%~95%
    Storage temperature

    -20~25℃(3-6months,50%SOC)

    -20~45℃(1-3months,50%SOC)

    -20~60℃(less than 1 month,50%SOC)

    Maximum Continuous Discharge Current≤262.5A
    Maximum Continuous Charging Current≤262.5A
    Insulation resistance factory test value(Ω)≥20MΩ
    Waterproof Grade of Battery BoxIP66
    Cooling modeNatural cooling


    Battery Module


    Cell Model8688190-17.5Ah
    Model Type5P1S
    Model Size (H*W*T)242× 97× 45.3(mm)

    Rated Capacity Module


    87.5Ah

    Nominal Voltage Module


    3.65V
    Module Weight≈1.51Kg
    The Module Of Energy Density211.5Wh/kg


    Battery cell parameters


    Capacity voltage: 3.6V17.5Ah 1C discharging (25±2 degree)


    Charging end of voltage :4.2V


    Standard charging and discharging current :0.5C


    max continuous charge and discharge current :1C


    max pluse charging current :1.5C(15-45 degree) < 30S


    max pluse discharging current :3C (15-45 degree) < 30S


    Working temperature : Charging:-10~45 degree


    Discharging :-20~55 degree


    Battery cell with UL certificate



    Battery pack

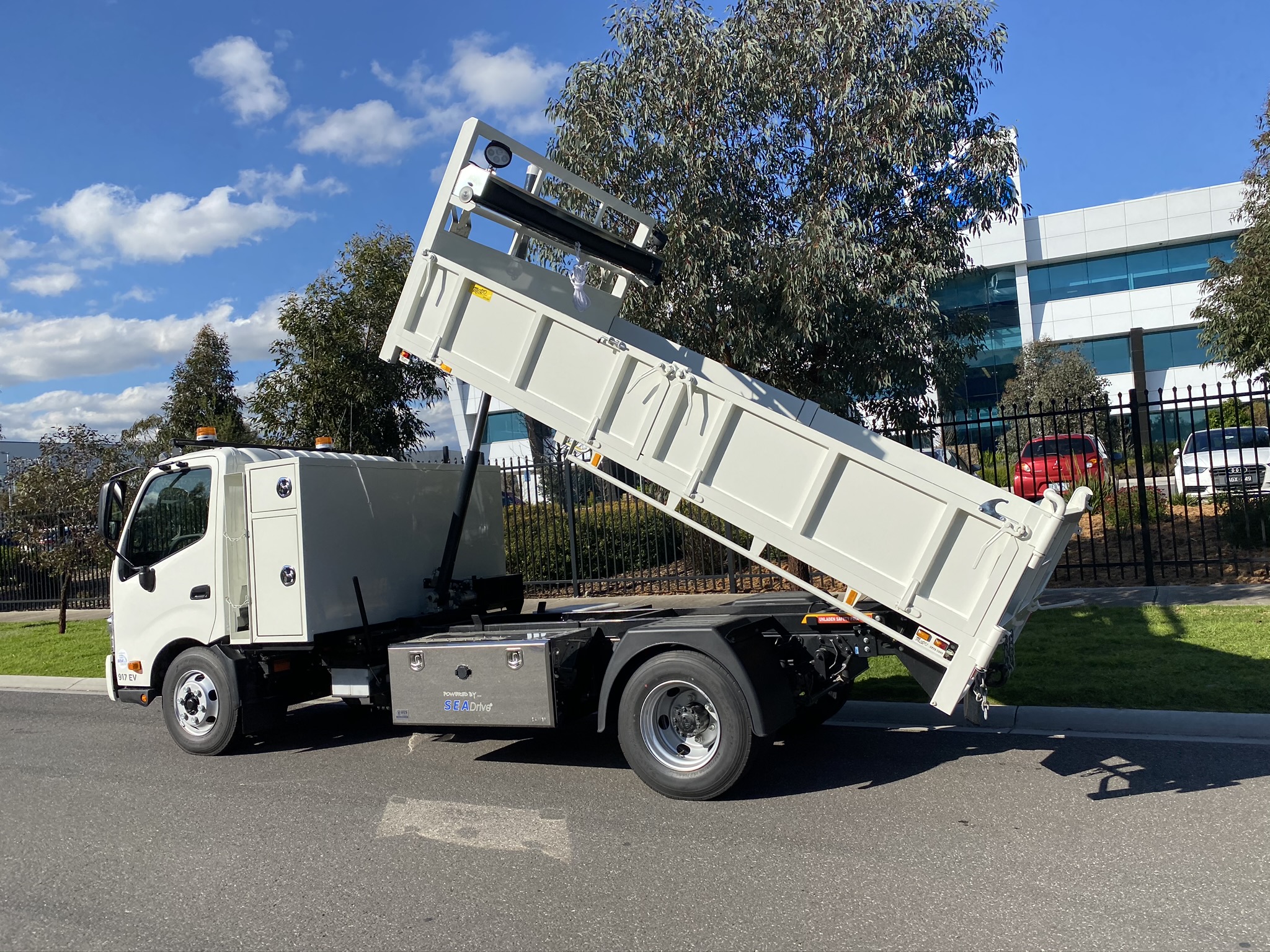

    Pure Electric tipper truck
