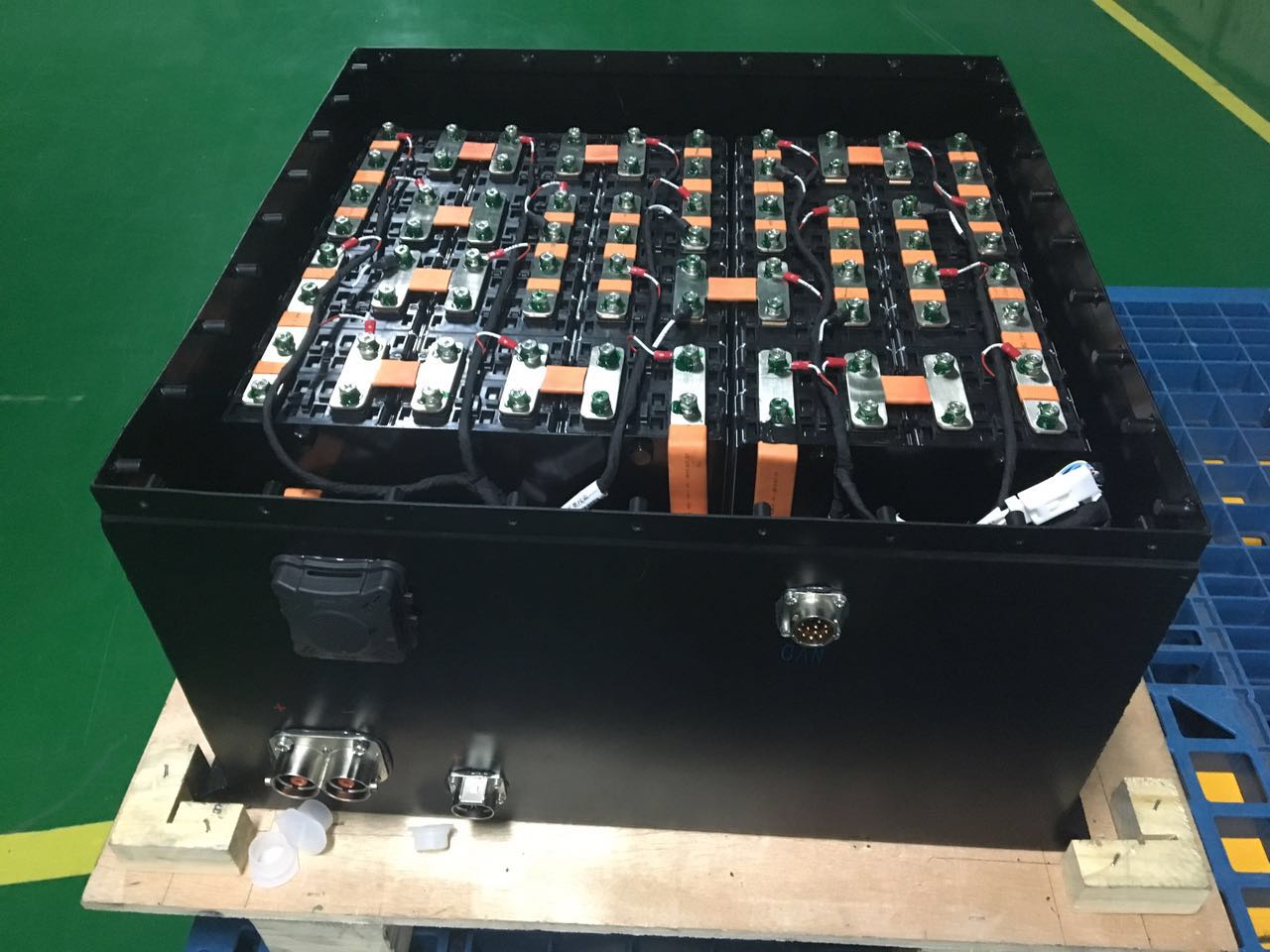

    10.8Kwh NMC Electric Vehicle Batteries With 2C Discharge

    Ask Lasest Price
    Brand Name : SOUNDON
    Model Number : SD-72-150
    Certification : UN38.3,UL ,CB ROSH
    Price : Negotiation
    Payment Terms : T/T or L/C
    Delivery Time : 25-30days after received payment
    • Product Details
    • Company Profile

    10.8Kwh NMC Electric Vehicle Batteries With 2C Discharge

    Electric Vehicle 24Vdc Lithium Car Battery with with Smart BMS IP67 Protection Level


    Specifications:

    ProjectParameter
    Voltage Range60V---84V
    Battery System Whole Energy (KWH) (KWh)23±2℃,1/3CRated :10.8kWh
    Battery System Whole Capacity(Ah) (Ah)23±2℃,1/3CRated :150Ah
    Capacity difference for Modules(Ah)≤1.5Ah
    Single Battery cellSEPNi8688190P-15Ah
    Battery Cell Configuration5P1S
    Battery system Working Temperature (℃)Discharge-20~55℃,Charge -10~55℃
    Battery system Surrounding environment relative humidity5%~95%
    Battery system storage Temperature

    -20~25℃(3-6 Month,50%SOC)

    -20~45℃(1-3 Month,50%SOC)

    -20~60℃(≤1 Month,50%SOC)

    Battery system Max. charging current100A
    Battery system Max. Instance discharging current(10s)300A
    Battery system standard discharging current100A
    Battery system instant discharging current (Max.) (30s)250A
    Battery system Max. Continuous discharging current (30min)100A
    Insulation Resistance Testing( Ω) (Main positive&Main Negative VS Battery case (Ω)≥20MΩ
    Cooling systemAir Cool

    Description:


    BMS Main Function


    1) Main Function

    • Charge and discharge management
    • Power:1 Way Power awaken
    • CAN communication ( refer to protocol for details)
    • Collect total voltage and current
    • Collect cell voltage
    • Collect temp, total Acquisition datas7
    • Balance Function
    • Program upgrade (CAN program burning)

    Principal computer display(Touch Screen, PC interface, with CAN communication trunk)

    Stand by power consumption <5mA


    Electric Power System Security Management


    • Voltage Monitor
    • Current Monitor
    • Over voltage and low voltage warning
    • Over current warning,Over tem. Warning

    Applications:

    Large electric vehicle: electric golf carts, buses, electric cars, sightseeing cars and hybrid vehicles
    Light electric vehicle: electric bicycle, small flat electric car, forklift, cleaning vehicles, electric wheelchair


    Competitive Advantage:

    1. Provide customization, of course, the cost is free. And global after-sales service.

    2. Ensure the consistency and the extension of battery pack life.

    3. Stable discharge voltage performance, good rate performance, excellent cycle life, perfect safety performance.

    4. UN38.3, UL certifications and standards of ROHS.
