    5.6Kwh Low Speed Electric Vehicle Battery 46.8V 120Ah

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : SD-EV-002-46.8120-02
    Certification : CE,ROHS ,MSDS
    Price : Negotiation
    Supply Ability : 500 units / day
    Delivery Time : 7-10days for sample , 20-25days for bulk purchase
    • Product Details
    • Company Profile

    5.6Kwh Low Speed Electric Vehicle Battery 46.8V 120Ah

    5.6Kwh High Power Deep Cycle Electric Vehicle Battery ,high capacity For Low Speed Vehicle


    Specification:


    The battery pack Model: 46.8V120Ah With Rated Voltage 46.8V ,Rated Capacity 120AH.

    46.8V 120AH battery pack power supply is composed by 26 pcs of 3.6V 60AH battery Module in 2P13S . While the 3.6V 60AH battery Module is made of 4 pcs of SEPNi8688190-15AH battery cells by 4P1S.



    Voltage Range 39V---54.6V(46.8V Rated Voltage)
    Battery Whole Energy (KWH) 23±2℃,1/3C Rated Energy:5.61kWh
    Battery system standard charging current:20A
    Battery system standard discharging current:100A
    Battery system instant discharging current (Max.):160A
    Battery case(Connector)& Battery case cover IP Class:IP67
    Cooling system:Air cooling
    .Battery case body and cover use 1.5mm Q345 Steel.
    .Battery case surface have black electrophoresis paints.

    Battery case inner flame retardant class is UL94-VO


    BMS Main Function

    1) Main Function
    Charge and discharge management
    2 way CAN communication ( refer to protocol for details)

    • Collect total voltage and current
    • Collect cell voltage
    • Collect temp, total 5 datas
    • Balancing, balancing current200mA
    • Program upgrade (CAN program burning)
      Principal computer display(Touch Screen, PC interface, with CAN communication trunk)

    Characteristics:


    High energy density

    Wide range of working temperature

    Ensured consistency and extension of battery pack life

    Environmentally-friendly

    Stable discharge voltage performance, good rate performance

    Free customization and after-sales service

    High safety level

    Short time to take full charge

    MSDS, CB certifications and standards of ROHS.


    Company introduce :


    Soundon New Energy is an enterprise engaged in technology innovation, product design and marketing for battery cathode material, high capacity lithium ion battery and luxury electric bicycles and other vehicles.


    Soundon New Energy has the ability to produce 5000 tons NCM&LIFEPO4 battery cathode material, 200 million Ah high capacity lithium ion battery ..


    Soundon New Energy industrial park now covers 200000 ㎡,with R&D building 100000 ㎡. We have completely automatic production lines for lithium ion batteries. And all the equipments are provided by world famous suppliers. Soundon possesses ISO9000-2008,ISO14001,TS16949 certification, international third-party certification.

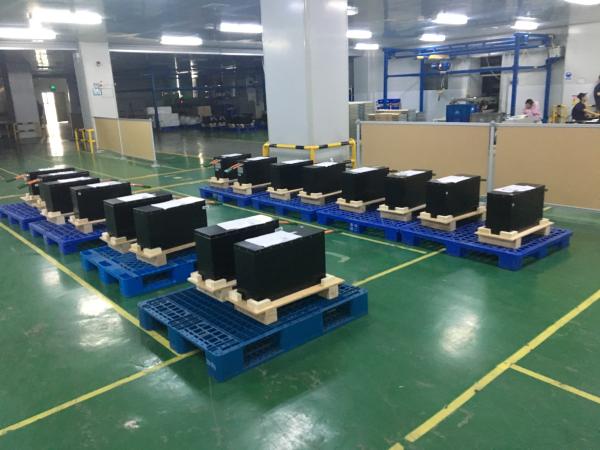

    Battery pack work shop



    Application:
