    UPS 19Ah LifePo4 Lithium Battery For House Energy Storage System

    Ask Lasest Price
    Brand Name : SOUNDON
    Model Number : SEPFe7592250P--19Ah
    Certification : UN38.3, ROHS,MSDS,UL
    Price : Negotiation
    Payment Terms : T/T or L/ C
    Supply Ability : 20000pcs/day
    Delivery Time : 25-30 days
    • Product Details
    • Company Profile

    UPS 19Ah LifePo4 Lithium Battery For House Energy Storage System

    19Ah LifePo4 Lithium Battery With Longer Cyclelife For House Energy Storage System,UPS ,back up power


    Specifications:


    ItemSpecification
    Nominal Capacity19Ah ,0.5C discharging(25±2℃)
    Nominal Voltage3.2V
    Charge Ending
    Voltage
    3.65V
    Discharge Ending
    Voltage
    2.0V(≥0℃)
    1.6V(< 0℃)
    Standard Charging
    Method
    25±2 0.5C constant current charge to 3.65V, then constant voltage
    3.65V charge till charged current declines to ≤ 0.05C
    Standard Discharging
    Method
    25±2 0.5C constant current discharge to 2.0V
    Max. Pulse Charging
    Current
    1.5C (1545, 50%SOC )≤30S
    Max. Pulse
    Discharging Current
    2C (1545, 50%SOC)≤60S
    Operating
    environment
    Charging:0-55, max.90%RH
    Discharging: -30-55, max.90%RH
    Impedance2.5mΩ
    Cell Weight
    (Not include PCB)
    0.369±0.015 kg
    Weight energy density170Wh/Kg
    Volume energy density357Wh/L


    Lithium Iron Phosphate (LiFePO4)


    Li-phosphate offers good electrochemical performance with low resistance. The key benefits are high current rating and long cycle life, besides good thermal stability, enhanced safety and tolerance if abused. Li-phosphate is more tolerant to full charge conditions and is less stressed than other lithium-

    ion systems if kept at high voltage for a prolonged time.


    Lifepo4 Battery cells test performance :


    1.high discharge rate :



    wide temperature discharge



    Longer cycle life

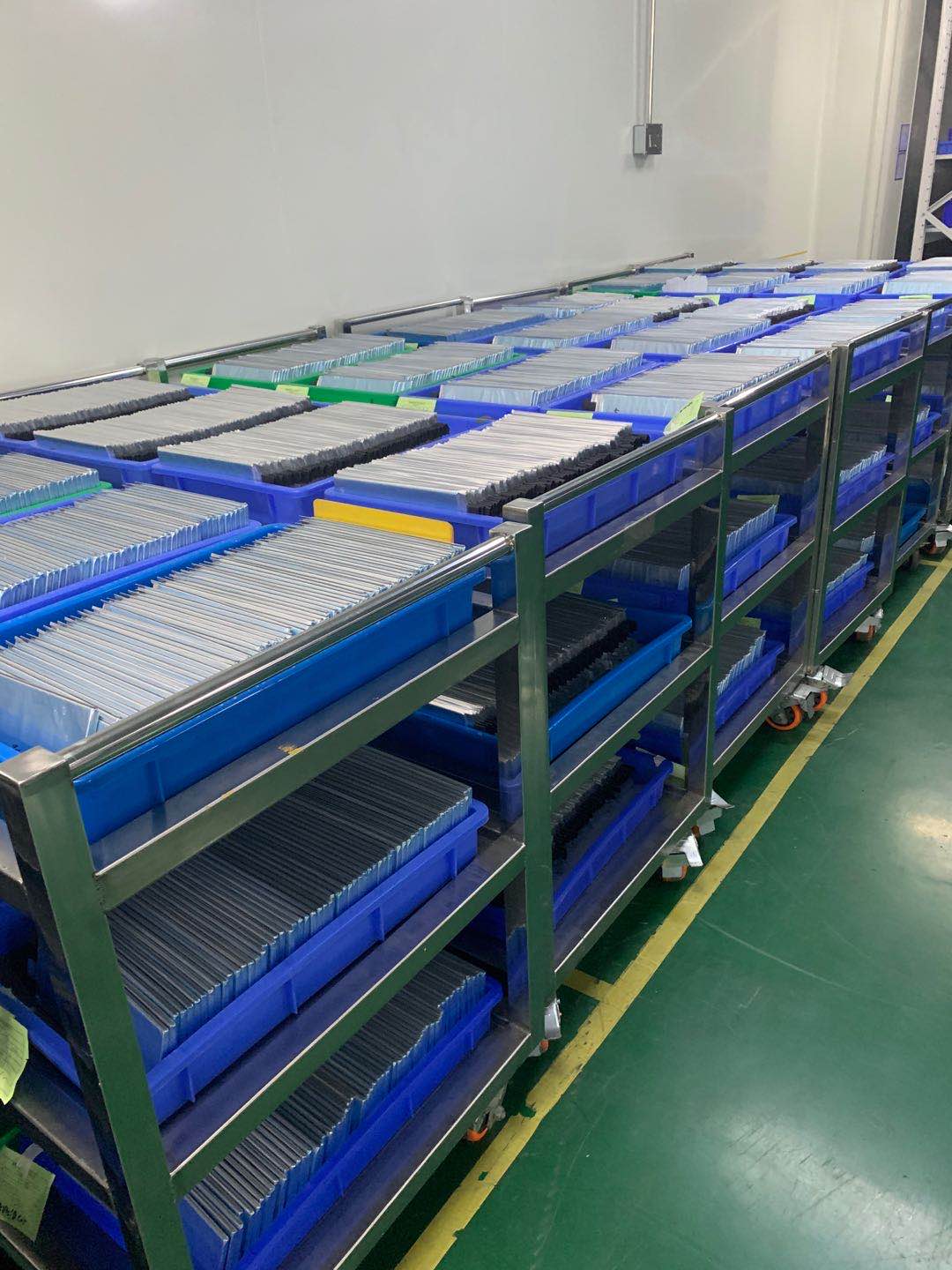

    Mass Production
