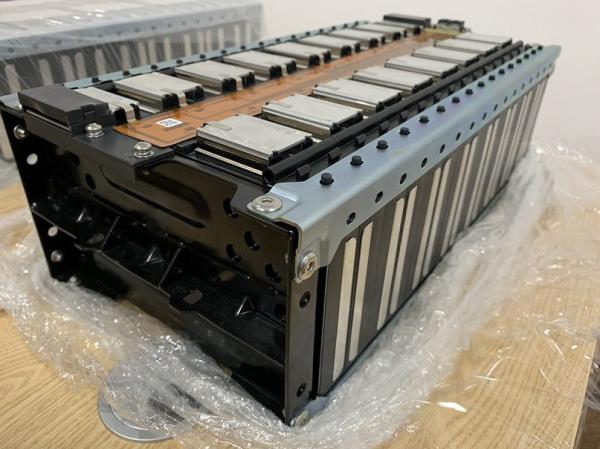

    4P14S 51.1V 128Ah NMC Battery For Electric Car

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : EV-014-51.1V/128Ah
    Certification : CE,ROHS,MSDS,CB,UL
    Price : Negotiation
    Supply Ability : 500/week
    Delivery Time : 25-30days
    • Product Details
    • Company Profile

    4P14S 51.1V 128Ah NMC Battery For Electric Car

    High Energy Density 51.1V128Ah NMC Battery Electric Vehicle Batteries For Car ,Van ,Streetscooter

    Batter cell Specifications:


    Item

    Specification

    Nominal Capacity32Ah
    Nominal Voltage3.65V

    Charge Ending Voltage


    4.2 V
    Impedance≤1.5 mΩ

    Cell Weight

    (Not include PCB)

    545±20g

    Battery Module :

    Item


    Specification


    Nominal Capacity


    128Ah ,0.5 C discharging(25±2℃)

    Typical Capacity


    128Ah ,0.5 C discharging(25±2℃)

    Minimum Capacity


    128Ah ,0.5 C discharging(25±2℃)
    Nominal Voltage51.1V

    Charge Ending Voltage

    68.8V

    Discharge Ending Voltage

    0℃≤T(Temperature)≤55℃

    0℃≤T≤55℃

    42V

    -20℃≤T(Temperature)≤0℃

    -20℃≤T≤0℃

    33.6V

    Standard Charging Method

    25±2℃ 0.5C constant current charge to 58.8V, then constant voltage 58.8V charge till charged current declines to ≤ 0.05C

    Max. Constant Charging Current

    1C (15℃~45℃)

    Max. Pulse Charging Current

    1.5C (15℃~45℃)≤30S

    Standard Discharging Current

    25±2℃

    0.5C constant current discharge to 48.0V

    Max. Constant Discharging Current


    1C

    Max. Pulse Discharging Current

    3C (15℃~45℃)≤30S

    Operating environment

    Charging:-10℃~55℃, max.90%RH

    Discharging: -20℃~55℃, max.90%RH

    Module Weight

    37.5±0.6 kg

    Energy Density

    1704.8Wh/kg

    SEPNi11217127- 32Ah module list




    Advantage:


    battery cell energy density up to 220wh/kg ,with high energy dengdity NCM material


    Battery cell are special design for electric vehicle battey with high energy density and safety


    Can configurate to any battery module can suit for car batteries,like below similar module:36.5V128Ah ,43.8v128Ah, 51.1V128AH ,58.4V64Ah


    Passed the international certificate :UN38.3,MSDS,CE


    Battery package are comply with international export transpotation rules UN38.3

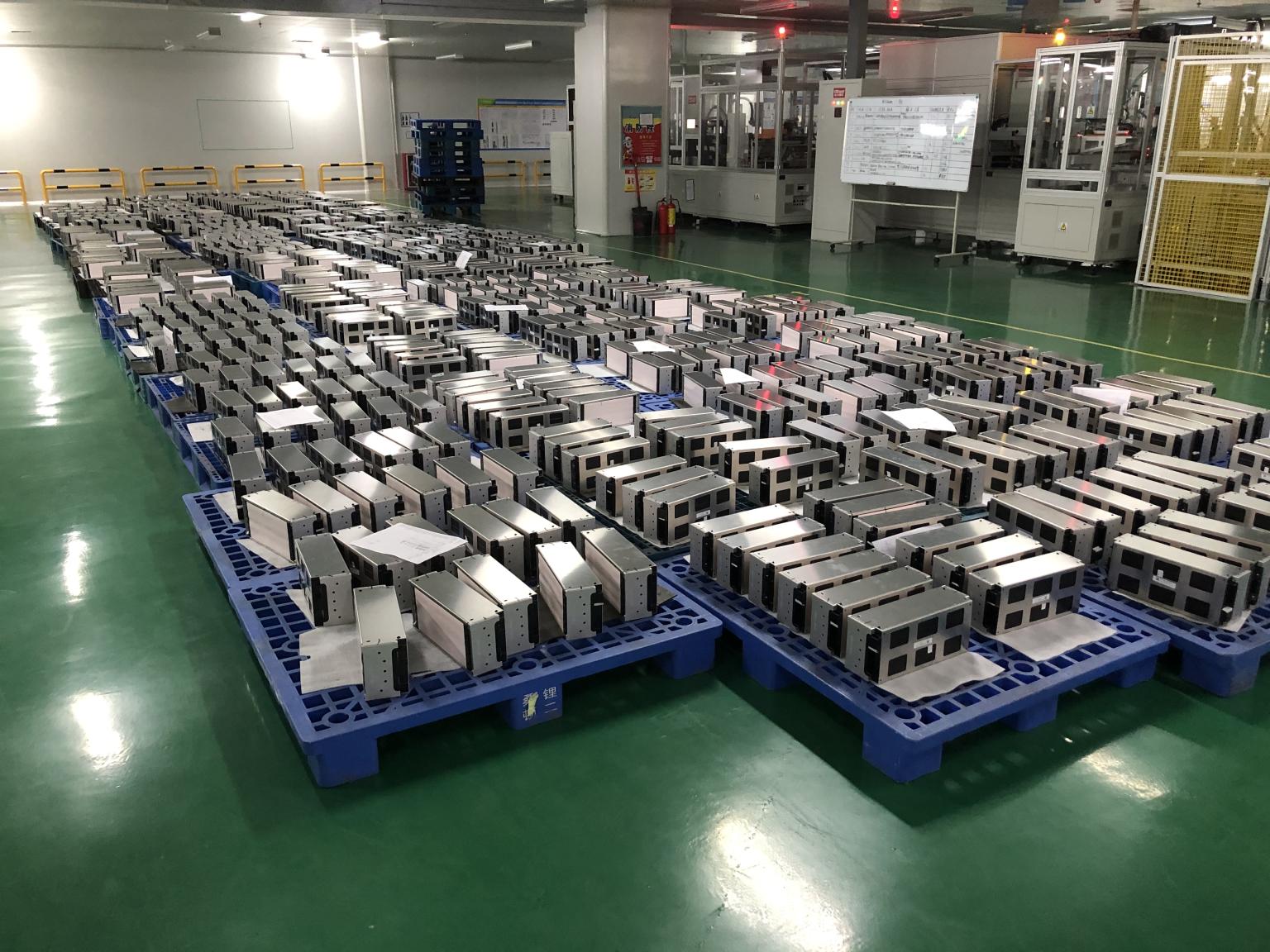

    Mass produdcition




    Shipping



    .
