    340V 150AH Special Vehicle Battery With 50Ah VDA Module

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : SD-EV-019-340V150AH-02
    Certification : CE, MSDS, ROHS,
    Price : Negotiable
    Supply Ability : 50units / week
    Delivery Time : 30 working days after payment
    • Product Details
    • Company Profile

    340V 150AH Special Vehicle Battery With 50Ah VDA Module

    340V150AH Special Vehicle Battery With 50Ah VDA Module For Electric Passenger Vehicle

    ContentParameter
    Voltage340V
    Energy(KWh)23±2℃,1/3C51kWh
    Capacity(Ah)23±2℃,1/3C150Ah
    Cell3.65V50Ah
    Configuration3P92S
    Recommended ambient temperature range(℃)Discharge-20~55℃,Charge 0~55℃
    Environmental Relative Humidity Recommended5%~95%
    Storage temperature

    -20~25℃(3-6months,50%SOC)

    -20~45℃(1-3months,50%SOC)

    -20~60℃(less than 1 month,50%SOC)

    Maximum Continuous Discharge voltage404.8
    Maximum Continuous Charging voltage276
    Insulation resistance factory test value(Ω)≥20MΩ
    Waterproof Grade of Battery BoxIP66
    Cooling modeLiquid cooling


    14.8V150AH Module speicification

    tem


    Specification


    Nominal Capacity

    150Ah ,1C discharging(25±2℃)

    152.4Ah,1/3C discharge (25±2℃)

    Typical Capacity153Ah ,1 C discharging(25±2℃)
    Minimum Capacity150Ah ,1C discharging(25±2℃)
    Nominal Voltage14.8V
    Charge Ending voltagemax voltage 4.4V
    Discharge Ending Voltage0℃≤T(Temperature)≤55℃to single cell min voltage 3.0V
    -20℃≤T(Temperature)≤0℃to single cell min voltage 2.4V
    Standard Charging Method0.5C constant current charge to single cell max voltage 4.4V,then cut-off to current 0.05C with constant voltage charge

    Max. Constant Charging Current


    1C

    Max. Pulse Charging Current


    1.5C≤30S
    Standard Discharging Current

    25±2℃

    1/3C constant current discharge to single cell min voltage 3.0V

    Max. Constant Discharging Current1C
    Max. Pulse Discharging Current3C≤30S
    Operating environment

    Charging: 0℃~55℃, max.90%RH

    Discharging: -20℃~55℃, max.90%RH

    Module Weight10.3±0.3 kg
    Energy Densityaround215.0Wh/kg



    Battery cell parameters

    Product50Ah cell
    Cell ModelSEPNi-11100302P(pouched)
    ChemicalsNCM/graphite
    Suitable applicationsElectric vehicles,hybrid electric vehicle
    Nominal capacity50AH
    Nominal voltage3.7V
    Rated voltage range3.0-4.4V
    Working voltage range3.0-4.35V
    Working temperature range-30℃~55℃(discharge);-20℃~55℃(Charge)
    Storage temperature range-30℃~55℃
    Specific energy density~260Wh/kg

    Dimension
    (length × width × thickness)/mm

    (302max)×(100max)×(11.6±0.2)
    StandardSizeSatisfy the size of VDA
    PerformancesAll tested parameters meets the requirements of national mandatory electrical and safety standards of GB/T 31484, GB/T 31485 and GB/T 31486,UN38.3

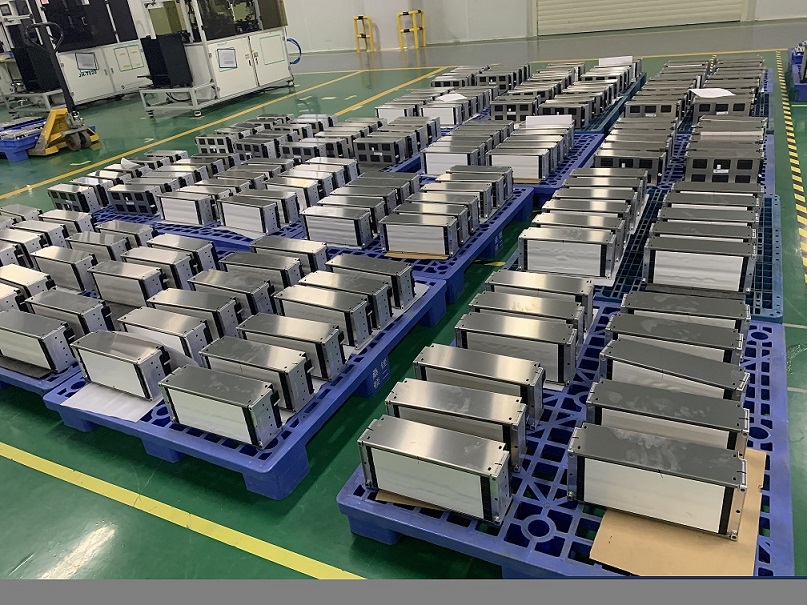

    14.8V150AH Mass Production
