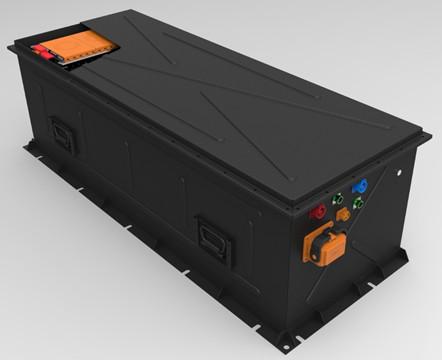

    569.4V 160Ah Electric Vehicle Batteries IP65 1375*538*430mm Dimension

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : SD-EV-569-160
    Certification : CE, MSDS, ROHS,UL
    Price : Negotiable
    Supply Ability : 50units / week
    Delivery Time : 30 working days after payment
    • Product Details
    • Company Profile

    569.4V 160Ah Electric Vehicle Batteries IP65 1375*538*430mm Dimension

    596.4V/160AH Electric Truck Battery With High Energy Density and Capacity For Electric Heavy Truck

    1


    Type




    NCM lithium ion battery

    2

    Min Configuration

    5P1S
    3

    Single Battery Box Configuration

    5P78S
    4


    Battery Model

    EV-014-569160-01
    5

    Rated Voltage

    569.4
    6

    Rated Capacity



    160
    7


    Working Voltage Range

    468~655.2
    8
    Total Energy
    SOC working range5%~100%
    10Outgoing state50%~60%
    11


    Temp difference Range

    ≤10℃
    12


    Cell Voltage Difference

    ≤20mV
    13

    )
    Cell Capacity difference

    ≤600mAh
    15


    Charging and discharging energy

    C3(Ah)Rated Capacity160Ah
    17

    Maximum instantaneous charging current (A) 10S

    256A@25℃


    Energy feedback time

    18


    Max Continuous

    160A25℃
    19

    Instantaneous discharge current (A) 30S

    280A@25℃


    MAX

    20

    Continuous discharge current (A)

    160A@25℃


    MAX

    21


    Working Temp Range


    Charge: 0-55℃/ discharge: -20-55℃

    22


    Storage Temp Range

    -20-45℃(1 month,50%SOC)
    -10-35℃(6 months,50%SOC)
    15-35℃(12 months,50%SOC)

    23


    Cycle life

    ≥1500cycle(25℃@1C)Capacity≥80%
    24

    Weight

    650
    25

    Cell quantity

    780
    26

    (Wh/kg)
    Energy Density

    142
    27


    Insulation resistance test value

    >500Ω/V
    28Working humidity15%-90%
    29IP gradeIP67
    30seismic resistanceQC/T743-2006
    31SafetyGB/T 31467.3
    32Coolingnatural cooling
    33HeatingPTC heating
    34High voltage interlockNo
    35


    Storage Environment Temp

    -20℃~+45℃


    Short term less than 1 month


    Battery cell parameters

    parameters
    Type11217127
    Voltage Range3.65V
    Rate Capacity32Ah
    Charge ending Voltage4.2V
    Discharge ending Voltage3.0V
    Cycle Life≥2000 times
    Discharge Currentcontinus1C;instaneous 3C,10s
    charge currentcontinus0.8C;instaneous 2C,10s
    Working Temperature (charge and discharge )-10℃~50℃/-20℃~55℃
    Weight≈0.545Kg
    Energy Density≈220Wh/Kg
    Size(H*W*T)127× 217×11(mm)


    Application
