    Silver Appearance Electric Vehicle Batteries 44.4V 50Ah 1P16S Battery Configuration

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : EV-019--44.4V/50Ah
    Certification : CE,ROHS,MSDS
    Price : Negotiation
    Supply Ability : 1000/day
    Delivery Time : 25-30days
    • Product Details
    • Company Profile

    Silver Appearance Electric Vehicle Batteries 44.4V 50Ah 1P16S Battery Configuration

    44.4V50Ah Battery Module with 260Wh/kg high energy density For Electric Vehicle Batteries


    VDA Battery Module specification:

    Item


    Specification


    Nominal Capacity

    100Ah ,1 C discharging(25±2℃)

    101.6Ah ,1/3C discharging(25±2℃)

    Typical Capacity

    102Ah ,1 C discharging(25±2℃)

    Minimum Capacity

    100Ah ,1C discharging(25±2℃)
    Nominal Voltage44.4V

    Charge Ending voltage

    max voltage 4.4V

    Discharge Ending Voltage

    0℃≤T(Temperature)≤55℃

    to single cell min voltage 3.0V

    -20℃≤T(Temperature)≤0℃

    to single cell min voltage 2.4V

    Standard Charging Method

    0.5C constant current charge to single cell max voltage 4.4V,then cut-off to current 0.05C with constant voltage charge

    Max. Constant Charging Current


    1C

    Max. Pulse Charging Current


    1.5C≤30S

    Standard Discharging Current

    25±2℃

    1/3C constant current discharge to single cell min voltage 3.0V

    Max. Constant Discharging Current

    1C

    Max. Pulse Discharging Current

    3C≤30S

    Operating environment

    Charging: 0℃~55℃, max.90%RH

    Discharging: -20℃~55℃, max.90%RH

    Module Weight

    10.3±0.3 kg

    Energy Density

    around215.0Wh/kg

    Battery cell sepcificaiton :


    Item

    Specification

    Nominal Capacity50Ah
    Nominal Voltage3.7 V

    Charge Ending Voltage

    4.4 V
    Impedance≤1.5 mΩ

    Cell Weight

    (Not include PCB)

    740g

    Superiority:


    Using high energy density NCM materials up to 260wh/kg .


    Battery cell is special design for electric vehicle which adopt the VDA standard to match any model battery pack ,and already mass production


    Passed the international certificate :UN38.3,MSDS,CE


    Battery package are comply with international export transpotation rules UN38.3 and dangerous package certificate.

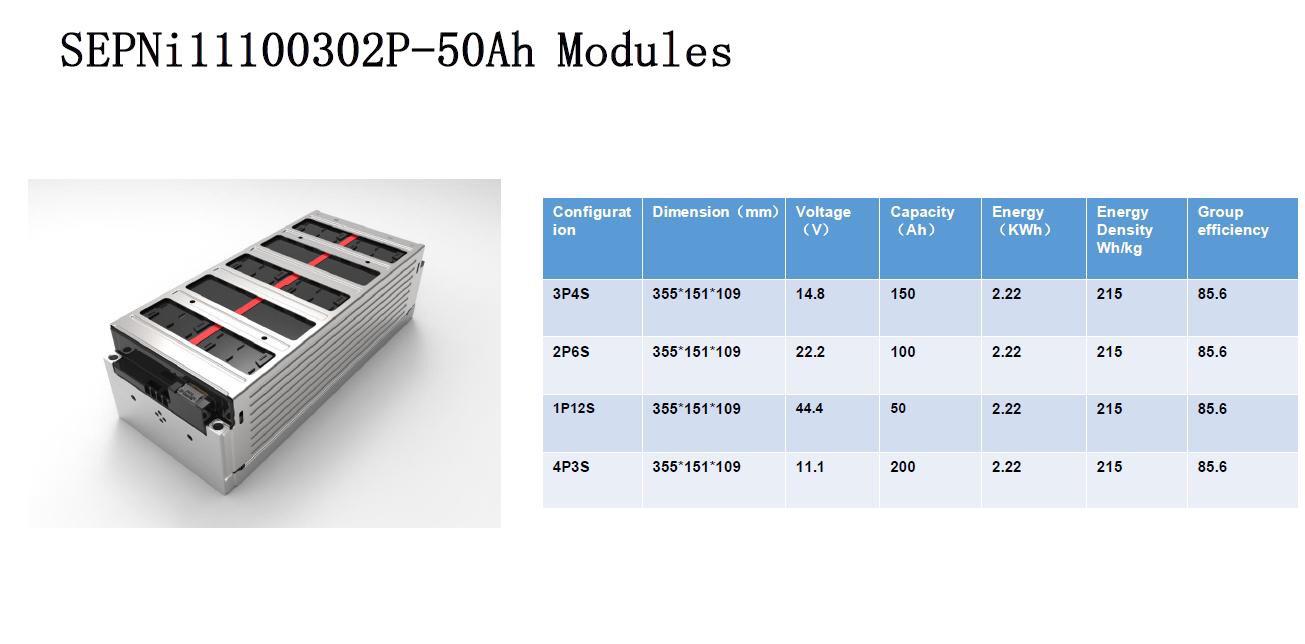

    Battery Module List



    Battery module :
