High Energy Density 3.65V70AH NMC Battery With BIS And UN38.3 Certificate

Soundon New Energy Technology Co,.Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Energy Density 3.65V70AH NMC Battery With BIS And UN38.3 Certificate from wholesalers

    Buy cheap High Energy Density 3.65V70AH NMC Battery With BIS And UN38.3 Certificate from wholesalers
    • Buy cheap High Energy Density 3.65V70AH NMC Battery With BIS And UN38.3 Certificate from wholesalers
    • Buy cheap High Energy Density 3.65V70AH NMC Battery With BIS And UN38.3 Certificate from wholesalers

    High Energy Density 3.65V70AH NMC Battery With BIS And UN38.3 Certificate

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : SEPNi8688190P-4P1S
    Certification : CE,UN38.3,ROHS,MSDS,ARAI,BIS
    Price : Negotiable
    Supply Ability : 1000 units / week
    Delivery Time : sample for a week ,mass production around 20-25
    • Product Details
    • Company Profile

    High Energy Density 3.65V70AH NMC Battery With BIS And UN38.3 Certificate


    High Enery Density 3.65V70AH NMC Battery With BIS And UN38.3 Certificate For UPS ,Telecom Base Station


    Basic Specification :


    ContentParameter
    CellSEPNi8688190P-17.5Ah
    Module inner configuration4P1S
    Module dimension(H*W*T)242× 97× 37(mm)
    Module rated capacity70Ah
    Module nominal voltage.3.65V
    Module weight(5P1S)≈1.283Kg

    Charge and discharge Performance


    Discharge current Voltage
    3.00V
    Standing charge method25±2℃ 0.5C constant current charge to 4.2V, then constant voltage
    4.2V charge till charged current declines to ≤ 0.05C
    Mac Constant charge current
    1C (15℃45℃)
    Mac Plus charge current

    1.5C (15℃45℃) ≤30S


    Standard Discharging
    Current

    25±2℃ 0.5C constant current discharge to 3.0V


    Max. Constant Discharging
    Current

    1C (-20℃+45℃)


    Max. Pulse Discharging
    Current

    3C (15℃45℃) ≤30S


    Operating environment

    Charging:-10℃-55℃,max.90%RH

    Discharging:-20℃-55℃,max.90%RH

    Impedance

    0.491~0.543mΩ


    Battery Cell basic performance
    Voltage ,capacity3.65V17.5AH
    Energy Density220wh/kg

    Discharge Ending Voltage

    0≤T(Temperature) ≤55:3.0V


    -30≤T(Temperature) <0 :2.4V
    Discharge current Voltage
    3.00V
    Standing charge method25±2℃ 0.5C constant current charge to 4.2V, then constant voltage
    4.2V charge till charged current declines to ≤ 0.05C
    Mac Constant charge current
    1C (15℃45℃)
    Mac Plus charge current

    3C (15℃45℃) ≤30S

    Standard Discharging
    Current

    25±2℃
    0.5C constant current discharge to 3.0V

    Max. Constant Discharging
    Current

    1C (-20℃+45℃)

    Max. Pulse Discharging
    Current

    3C (15℃45℃) ≤30S

    Operating environment

    Charging:-10℃-55℃,max.90%RH

    Discharging:-20℃-55℃,max.90%RH

    Impedance

    3.5 mΩ


    Middle Module

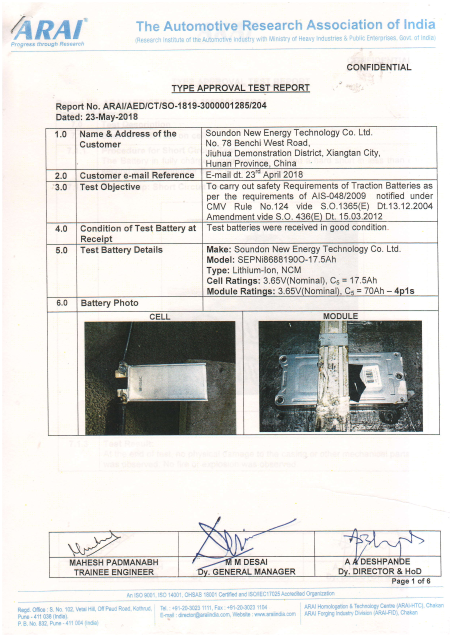

    3.65V70AH Battery Module With ARAI

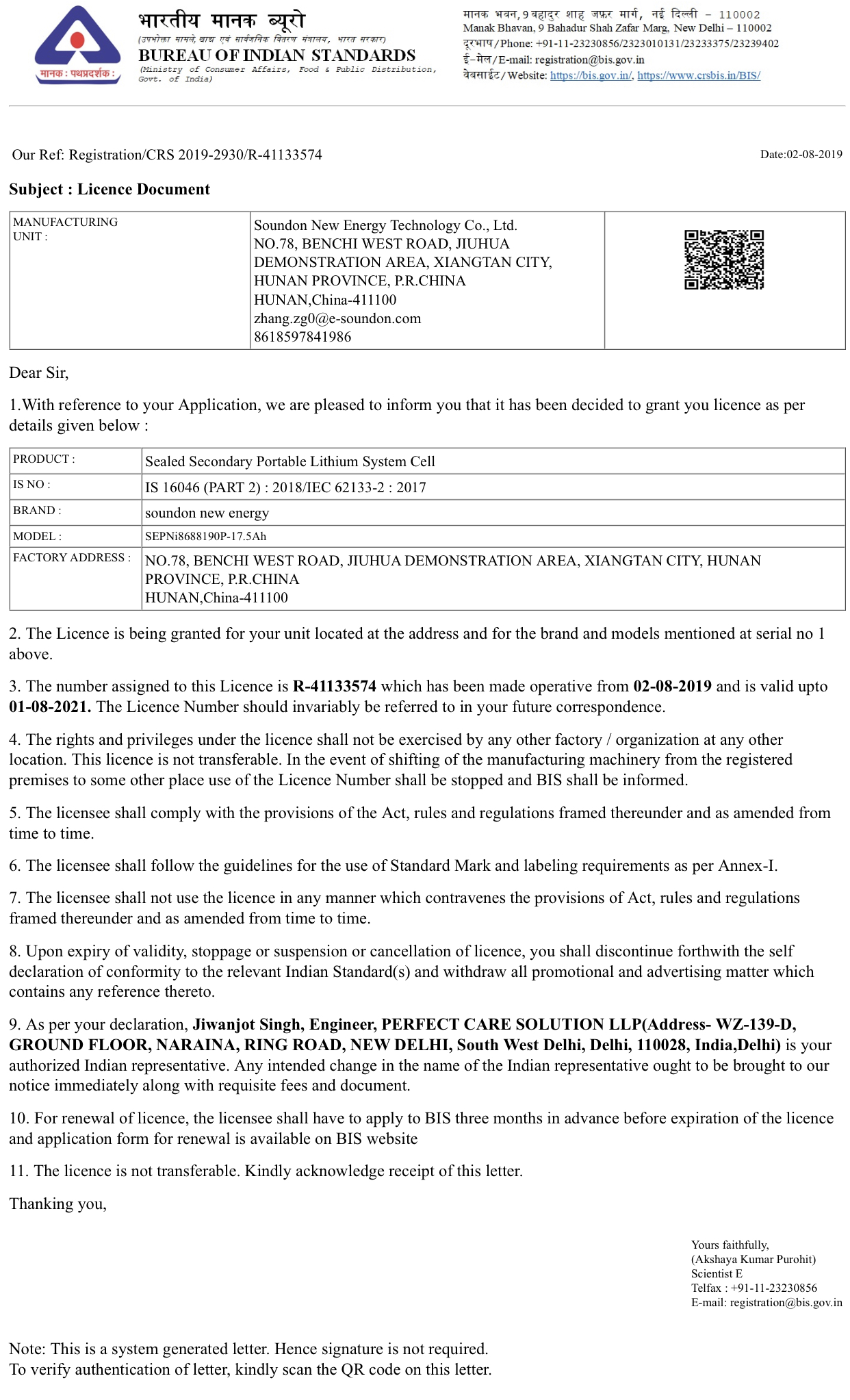

    3.65V17.5AH Battery cell with BIS
