521KWh 20ft Container Storage Battery Systems For Off Grid Energy Storage Station

Soundon New Energy Technology Co,.Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 521KWh 20ft Container Storage Battery Systems For Off Grid Energy Storage Station from wholesalers

    Buy cheap 521KWh 20ft Container Storage Battery Systems For Off Grid Energy Storage Station from wholesalers
    • Buy cheap 521KWh 20ft Container Storage Battery Systems For Off Grid Energy Storage Station from wholesalers
    • Buy cheap 521KWh 20ft Container Storage Battery Systems For Off Grid Energy Storage Station from wholesalers

    521KWh 20ft Container Storage Battery Systems For Off Grid Energy Storage Station

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : SD-ESS-1.5MW
    Certification : CE,ROHS UN38.3
    Delivery Time : 35day
    • Product Details
    • Company Profile

    521KWh 20ft Container Storage Battery Systems For Off Grid Energy Storage Station


    521KWh 20ft Container Storage Battery Systems For Off-grid Energy Storage Sation ​


    This energy storage system with 1 set 500KW/521KWh LiFePO4 battery system ,air conditioner ,500KW PCS ,EMS ,fire fighting system .


    Parameters


    paramerters
    Capacity521KWh
    Rated power500KW
    cycle life>5000 cycle (90%DOD)
    charge and discharge efficency88%(under air conditioner )
    charge and discharge efficency82% (without air conditioner)
    working temperature-20~50°C
    storage temperature-40~50°C
    Battery cell
    Battery typeLiFePO4
    Rated voltage and capacity3.2V50Ah
    interal resistance0.8
    Voltage Range2.7-3.65V
    working temperaturecharge :-10~50°C
    discharge :-30~55°C
    Max humidity 90%
    cycle lifearound 5000 times
    Working lifemore than 8 years

    System feature

    • support RS485 and RS232
    • can support 1 high-speed Ethernet port and 4G
    • support Modbus RTU,Modbus TCP ,CAN protocol
    • Using high energy density and high cycle life lithium battery
    • Module design, easy to install and maintain
    • support energy storage system peak-load shifting ,battery protection and system protection strategyand so on .
    • Independent fire control system, and support fire emergency stop, local system emergency stop, remote emergency stop function

    Application


    Island micro grid, Power stations with new or distributed energy access; Small fire peak and frequency modulation power station Outdoor temporary heavy duty center, Load fluctuations of the factory, enterprise, business center etc.

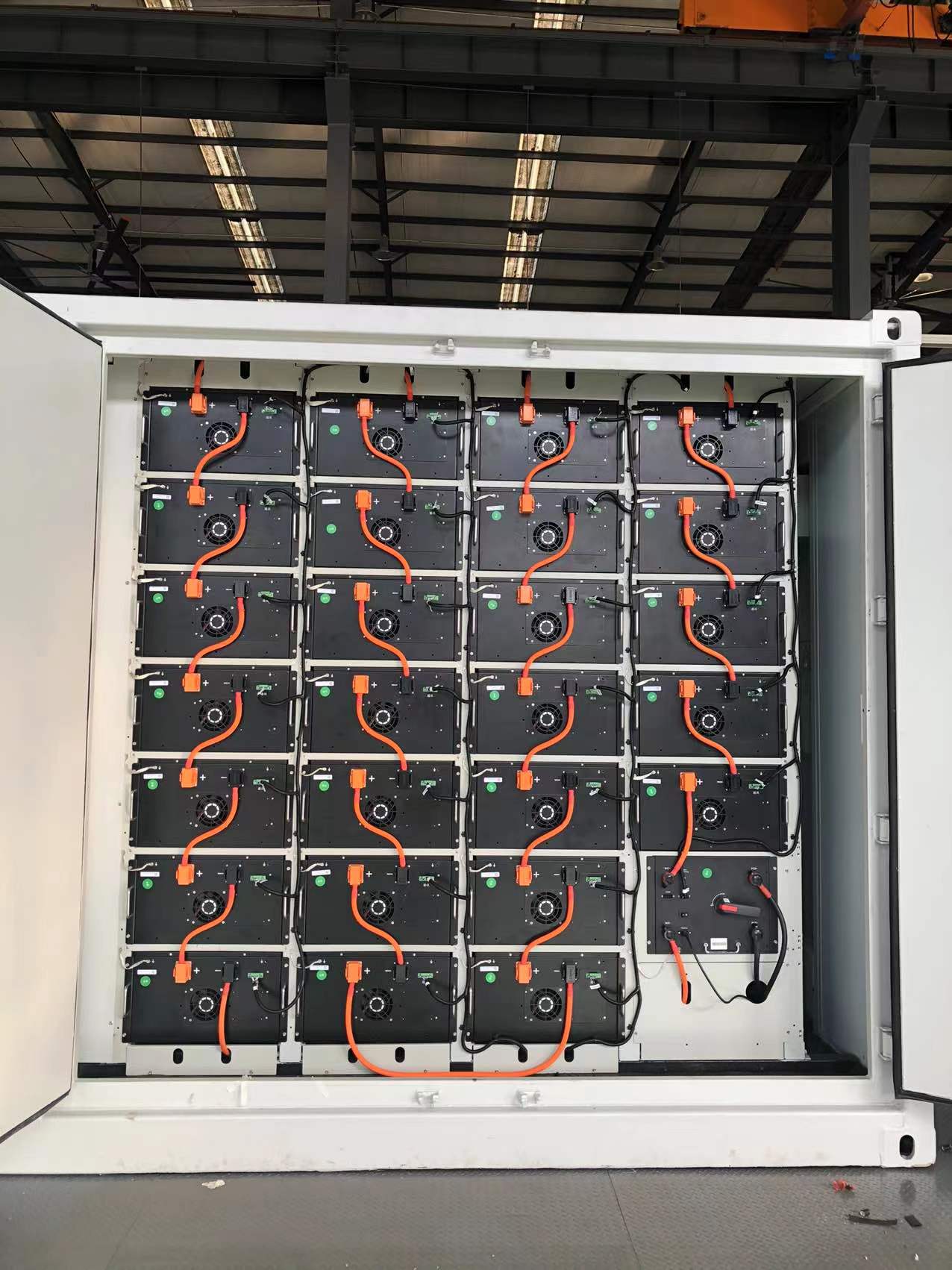

    Battery system
