47.45V87.5Ah High Energy Density Home Storage Battery With 5-10 years Warranty And Longer Cycle life

Soundon New Energy Technology Co,.Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 47.45V87.5Ah High Energy Density Home Storage Battery With 5-10 years Warranty And Longer Cycle life from wholesalers

    Buy cheap 47.45V87.5Ah High Energy Density Home Storage Battery With 5-10 years Warranty And Longer Cycle life from wholesalers
    • Buy cheap 47.45V87.5Ah High Energy Density Home Storage Battery With 5-10 years Warranty And Longer Cycle life from wholesalers
    • Buy cheap 47.45V87.5Ah High Energy Density Home Storage Battery With 5-10 years Warranty And Longer Cycle life from wholesalers

    47.45V87.5Ah High Energy Density Home Storage Battery With 5-10 years Warranty And Longer Cycle life

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : ES-12-47.45V87.5Ah-01
    Certification : CE,UN38.3,ROHS,MSDS,UL
    Price : Negotiable
    Supply Ability : 300 units / week
    Delivery Time : sample for a week ,mass production around
    • Product Details
    • Company Profile

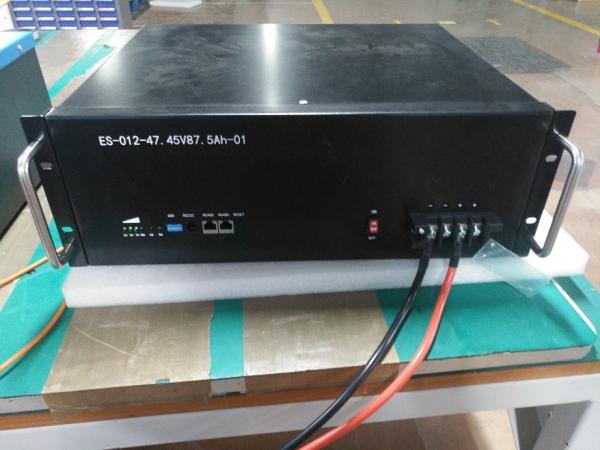

    47.45V87.5Ah High Energy Density Home Storage Battery With 5-10 years Warranty And Longer Cycle life

    47.45V87.5Ah Lifepo4Home Storage Battery With 5-10 years Warranty And High Energy Density


    Specification :


    Battery Module :


    Battery cell MODESEPNi8688190P
    Battery cell capacity Ah17.5Ah
    Configuration5P1S
    Dimension mm
    (H*W*T)
    232.5*97*45.3
    Module Rated Capacity Ah/Wh87.5AH
    Module Rated Voltage V3.65
    Module Weight Kg1.61
    Module Weight Wh/Kg198

    Battery Pack Parameters


    Configuration5Parallel 13series
    CapacityRated Capacity: 87.5AhStandard Discharge Current:
    0.5C

    Discharge Cut off Voltage:36V

    Voltage


    Average Voltage:87.5Ah

    Standard Discharge Current:
    0.5C


    Discharge Cut off Voltage:36V


    Working voltage
    36~54.6V DC

    Charge Condition
    standar charge current :10A
    Rapid Charge current:20A
    Maximum Charge Current: 50A
    Discharge Conditionstandar discharge current :30A
    Maximum disCharge Current: 50A
    Indepedance
    150mΩ
    working Temperature

    Charge :(040) ℃

    discharge:(-1060)℃


    (≤80% humidity)

    Cycle life3000 cycles (0.5C 80%DOD)
    Storage Temperature

    1 month:-1045

    3month:-1025


    Relative humidity≤90%

    Soundon New Energy NMC Pouch Battery Cell List

    ModelSEPNi8688190P-17.5AhSEPNi11217127P-32AhSEPNi11100302P-50Ah
    Rated Capacity(Ah)17.53250
    Typical capacity(Ah)17.932.9651
    Rated Voltage(V)3.653.653.7
    Internal Resistance(mΩ)≤3.5≤2.0≤1.5
    Thickness MAX(mm)8.711.511.8
    Width MAX(mm)92217101
    High MAX(mm195127303
    Power(Wh)63.875116.8185
    Energy Density(Wh/Kg)220217260
    Energy Density(Wh/L)409368528
    High Temp performance ((55℃)≥100%≥100%≥100%
    Low Temp Performance(-20℃)≥75%≥75%≥75%
    Cycle1C/1C≥25001C/1C≥250080%SOH≥1500cls
    Cell Weight293±10g545±15g

    735±20


    Battery Cell Advantage:


    1 .Battery cell are pass the UL ,UN38.3,BIS ,ARAI ,MSDS internatioal Certificate .

    2.Battery Cell are got the Sea and Air transport indentification and classification Report

    3.Good low temperature : 220wh/kg battery cell system discharge capacity / energy can reach 69.5% / 62.7% under -20℃

    260wh/kg battery cell system discharge capacity / energy can reach 73.2% / 67.8% under -20℃


    4.Long cycle life :260wh/kg battery cell system cycle life is 2000 cycles (25 degree at 1C)


    Package
