54.6V Removeable charging NCM Material Battery 6P13S For e
motortrike and scooter
Specifications:
| Item | Parameter |
| Voltage Range | 39V---54.6V |
Battery system whole energy(KWh) 23±2℃,1/3C | Rated:3.6kWh |
Battery system whole capacity 23±2℃,1/3C | Rated:75Ah |
| Cell configuration | 6P13S |
| Battery system working temperature | Discharge-20~45℃,charge 0~45℃ |
| Battery surrounding environment relative humidity | 10%~85% |
| Battery storage temperature | -20～45℃ |
| Battery standard charging current(23±2℃) | 15A |
| Battery Max charging current(23±2℃) | 37.5A |
| Battery standard discharging current(23±2℃) | 37.5A |
| Battery continuous discharging current(23±2℃) | 45A |
| Battery discharge peak current(5s)(23±2℃) | 150A |
| Battery system insulation resistance testing value | ≥20mΩ |
| Insulation Resistance Testing | ≥20MΩ |
Features
High Energy Density:This battery pack with NMC high energy density material,will help
extends the electric motorcycle's range while reducing overall cost
Lightweight Design: Compared to lead-acid batteries, NMC batteries are significantly
lighter, improving the motorcycle's handling and acceleration.
Long Cycle Life:1500-2000 times charge-discharge cycles and 3-5 years warranty
Fast Charging Capability:These batteries support high-rate charging, achieving a full charge
in 2–3 hours , much faster than lead-acid batteries.
Wide Operating Temperature Range :They operate effectively in temperatures ranging from -20°C to 60°C, making them suitable for diverse climates.
High Discharge Performance :NMC batteries deliver high-power discharge, meeting demands for
acceleration, hill climbing, and other high-power scenarios.
Application
- Urban Commuting: Perfect for daily riders needing long range and fast charging.
- Mountainous or Hilly Areas: High discharge performance suits regions with frequent uphill
riding.
- High-Frequency Use: Ideal for users requiring quick recharging and regular operation.
Company introduction :
Soundon New Energy was established in 2011, as a global leader in
EV battery systems with 13 years of professional experience in the
research, design, and production of lithium battery cell and
battery pack, with 65000tons cathode material and 26GWh battery
cell manufacturing capacity.
.

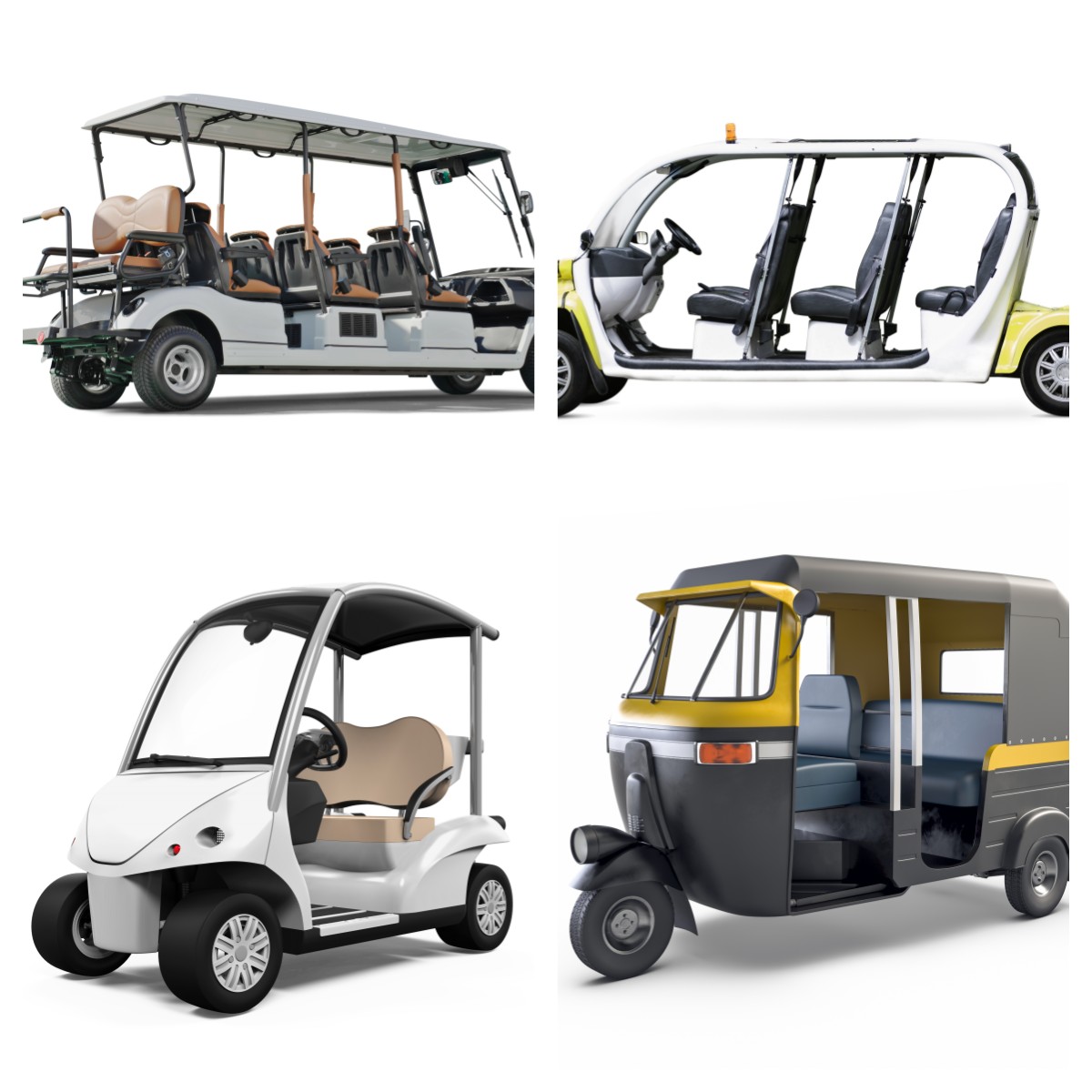

The products are widely used in electric commercial vehicle, low
speed vehicle and energy storage system, such as electric light and
heavy-duty trucks, mining trucks, terminal tractors, boat,
agricultural machinery, RVs, school buses, road sweepers, electric
motorcycle, tricycle and golfcart etc. our products has passed
CE/ROHS/UN38.3/UL1973/R100.2/J2464/AIS-038/BIS certificates.
As well as ,we can provide one-stop motorcycle battery swap system
solution, including two/three - wheeled swap battery, battery swap
cabinet with different specifications, and battery swapping system
(APP and Cloud management platform) .
Soundon is dedicated to sustainability and innovation, continually
enhancing our products and contributing to a cleaner environment.
