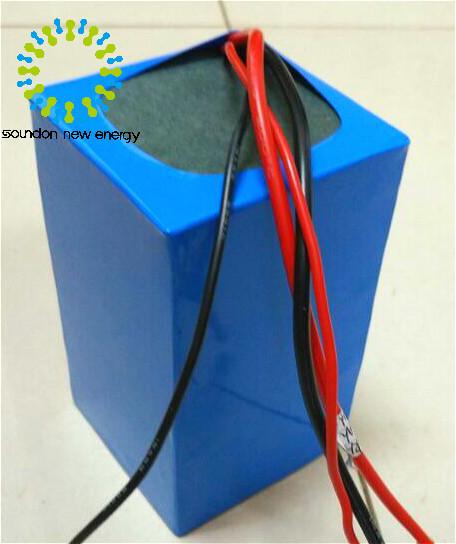

ESS battery 18V 3Ah With 10C Discharge Current with UN38.3 ROHS
Battery pack Specification :
Nominal Capacity:18V
Maximum Charge Current:1C
Charging cut off Voltage:21v
Charging time(Max. charge current):1.5~2.0 hours
Maximum Discharge Current:30A
Discharge Cut-off Voltage:14v
Pack Dimension:Thickness :49*Width :68.5*Length :94mm
PACK Weight:around 485 g
Voltage as of shipment:18v~19.5v
Protection borad Parameters:
| Item | Specifications | Remark |
| Over charge protection voltage | 4.25V | ±25 mV(25 °C) |
| Over dischargevoltage | 2.8V | ±50 mV(25 °C) |
| MAX charging current | 4 A | / |
| MAX discharging current | 30 A | / |
| Over discharging protection current | 80~100A | / |
Soundon battery description :
Electric vehicle and Energy storage battery manufactory
1) .Soundon specilist for Lifepo4 battery and LI polymer battery
with prismatic case are mainly applied in electric Vehicle ,Energy
storagae
Lifepo4 battery and lipolymer battery cells models with below
advantage :
- 3C high discharge current :
- longer cyclelife : lifepo4 :>3000 times lipolymer >2000times
- unique Lamination technology :
- power battery cell type for EV battery pack ,
- High density cells for Energy storage ,
| Module | Capacity
(Ah) | Voltage (V) | Thickness(mm) | Width (mm) | Height (mm) | Energy Density (WH/KG) | High Temp Performance
(55℃) | Low Temp Performance
(-20℃) | Self discharge(RT 28d) | 3Cdischarge | cyclelife
(RT 1C/1C) |
| SEPNi7688190P-12.5Ah | 12.5 | 3.65 | 7.6 | 88.0 | 190.0 | 180 | ≥99% | ≥70% | ＜5% | ≥90% | ≥2000 times |
SEPNi7619 0190P-25Ah | 25 | 3.65 | 7.6 | 190.0 | 190.0 | 190 | ≥99% | ≥70% | ＜5% | ≥90% | ≥2000 times |
SEPFe801 25256P-20Ah | 20 | 3.2 | 8.0 | 125.0 | 256.0 | 134 | ≥99% | ≥50% | ＜5% | ≥90% | ≥3000 times |
SEPFe9016 1227P-25Ah | 25 | 3.2 | 9.3 | 161.0 | 227.0 | 140 | ≥99% | ≥50% | ＜5% | ≥90% | ≥3000times |
SEPFe1119 0316P-50Ah | 50 | 3.2 | 11.3 | 190.0 | 316.0 | 140 | ≥99% | ≥50% | ＜5% | ≥90% | ≥3000times |
SEPFe1221 2268P-50Ah | 50 | 3.2 | 11.8 | 212.0 | 268.0 | 140 | ≥99% | ≥50% | ＜5% | ≥90% | ≥3000times |
3.International Product certification : UN38.3,CB ,CE, Rohs ,UL certification
4.Quality Approvals : ISO9001,ISO14001,TS16949 quality system standard approved
Service :
1.Flexiable transportation : international Express and shippment by
sea
2.warranty : 24 months guarantee for free
3. Small Orders Accepted : sample are available for test
Company Introduction :
1.Soundon New Energy established in 2011, which is invested by
Sound Group and stock jointed by Sound Environment. With a
registered capital of $155 million and an investment of $128
million
2. Soundon is an enterprise engage in technology innovation,
product design and marketing of battery cathode materials, high
capacity lithium ion batteries and electric vehicles.
3. The capacity of lithium battery can reach 2,160 MWH million Ah,
high quality lithium battery cathode material (Li-NiCoMn, Li-Mn) up
to 30,000 tons.
Professional manufactory with Complete Quality System like ISO
9001,ISO 14001,TS16949,OHSAS18001
