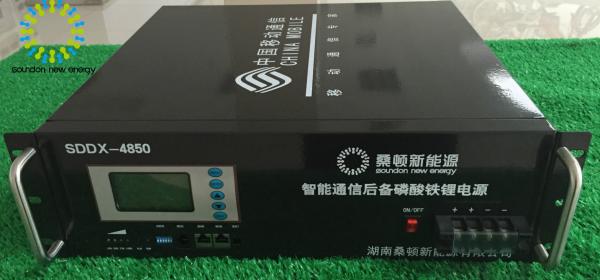

48V 50Ah Home Storage Battery , CAN Communication Charging Lifepo4 Batteries Packs

Soundon New Energy Technology Co,.Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 48V 50Ah Home Storage Battery , CAN Communication Charging Lifepo4 Batteries Packs from wholesalers

    Buy cheap 48V 50Ah Home Storage Battery , CAN Communication Charging Lifepo4 Batteries Packs from wholesalers
    • Buy cheap 48V 50Ah Home Storage Battery , CAN Communication Charging Lifepo4 Batteries Packs from wholesalers

    48V 50Ah Home Storage Battery , CAN Communication Charging Lifepo4 Batteries Packs

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : SD-ES-4850-001
    Certification : ROHS ,MSDS ,TLC certification,CE
    Price : Negotiation
    Payment Terms : L/C at sight , T/T
    Supply Ability : 300 pcs /day
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    48V 50Ah Home Storage Battery , CAN Communication Charging Lifepo4 Batteries Packs

    48V 50Ah Home Storage Battery , CAN Communication Charging Lifepo4 Batteries Packs


    Specification :


    Electrical Specification
    Nominal Voltage48V
    Maximum Voltage56V
    Minimum Voltage42V
    Continuous current40A
    Peak Current60A
    Peak current duration3S
    Max charge current40A
    Capacity range40 to 60AH
    Life Cycle4000 cycles @ 80% DOD
    Protections and Features
    ProtectionsOver voltage, Under voltage,
    Over Current, Short circuit,
    Over Temperature, Low temperature,
    Deep-discharge
    FeaturesPre-charge, Passive balancing,
    Parallel operation
    Communication
    CommunicationCAN, RS232/485
    Optional CommunicationMODBUS RTU
    Environmental Specifications
    Temperature Max55 degree C
    Temperature Min-10 degree C
    RH90%

    1. Telecom back up power System Working Way :


    1.Back-up power system consists of a dedicated plug into the mains 220V circuit, the system built by the post-processing the output rectifier power module-48V DC power grid under normal circumstances.


    2. the system needs to provide the rectifier power module the power while charging the battery system toback up power grid in case of power failure, provided by back up power series battery power systems, DC power systems to ensure proper operation, uninterrupted power supply function.


    3.Power with rechargeable function, when the battery voltage is too low battery power management module BMS cut off the power supply circuit to protect the battery life.


    2. Software and Communication Module


    RS232 communication


    Cell system using the RS232 interface to communicate with up system, the battery system transmission parameters, and alarm status information, protection information, and other parameter settings of the battery module, RS232 communication rate of 1200bps for general use.

    Only when the DIP switch is set to Pack1 (Master Pack) mode, RS232 communication module to be

    effective.


    RS485 Communication RS485


    When the battery pack in parallel, main battery pack can communicate via RS485 interface,which saw main battery and other battery pack information from PC.

    Battery pack good performance
