    UPS System Batteries , Polymer Lithium Battery Replacement Batteries ForUPS , backup power supply,solar energy

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : SD-12-40
    Certification : ROHS,CE,MSDS
    Price : Negotiation
    Supply Ability : 1000 Units / day
    Delivery Time : 20-25days after payment
    • Product Details
    • Company Profile

    UPS System Batteries , Polymer Lithium Battery Replacement Batteries ForUPS , backup power supply,solar energy


    lifepo4 lithium battery 12V 40Ah storage batteries for UPS , backup power supply,solar energy


    Specifications:

    No

    Item

    Parameter

    Remark

    1

    Rating Voltage

    12.8V


    2

    Cell Capacity

    ≥300min


    At standard testing condition after standard charging, rest for

    10min, then discharging at 1C to 2.2V, recording the discharging Capacity

    3

    Battery Capacity

    ≥280min

    At standard testing condition after standard charging, rest for

    10min, then discharging at 1C to 8.8V, recording the discharging Capacity


    4

    Charge Voltage

    14.6V±0.05V


    5

    Impedance

    400mΩ(Max)

    10mΩ(Max)

    6

    Battery pack Size

    93*185*255mm

    including the protection plate size

    7

    Charging Mode

    C.C/C.V.

    Constant Current

    /Constant Voltage

    8

    Charging Method

    Standard Charging 0.2C5A

    Charging Current 0.2C5A

    10

    Charging Time

    Standard Charging

    7Hours


    11

    End of Discharge

    Voltage

    8.8V


    12

    Overcharge Voltage

    3.75±0.025V/cell

    Max 15V/battery

    13

    Over Discharge Cut Off Voltage

    2.2±0.08V/cell

    Min 8.8V/battery

    14

    Over Current

    40A±0.2 A


    15

    Short Circuit

    Recover after removing the short circuit load



    16

    Operating Consumption Current

    50uA (Max)



    17

    Operating Temperature

    Charging

    0~45℃


    Discharging

    -10~45℃

    18

    Storage Temperature

    -10℃-45℃

    Recommend(25±5℃)

    Storage capacity should be 40%~50% full charge capacity

    19

    Cycle Life

    2000 cycle



    Description:


    Guaranteed Quality...........Less than 0.1%~0.3% repair rate for different products

    Long-Term Warranty.........up to 3 years according to different type

    Table operating voltage: excellent satbility on the high voltage plaform where the voltage is almost unchanged; the output capacity is still more than 90%

    Product good consistency

    Certificate through..............CE, ROHS, UN38.3, MSDS


    Applications:


    Mainly applied for the computer back up power supply ,UPS ,telecom based station ,solar energy storage ,household storage ,smart grids


    Our Service :


    1.Advanced equipment and professional technology team can quick provide battery proposal for you .


    2. We could design and produce the battery pack with aluminum shell. assembly procession for customized configurations is available


    3. we could design and develop Li-ion battery according to your product work performance & structure appearance

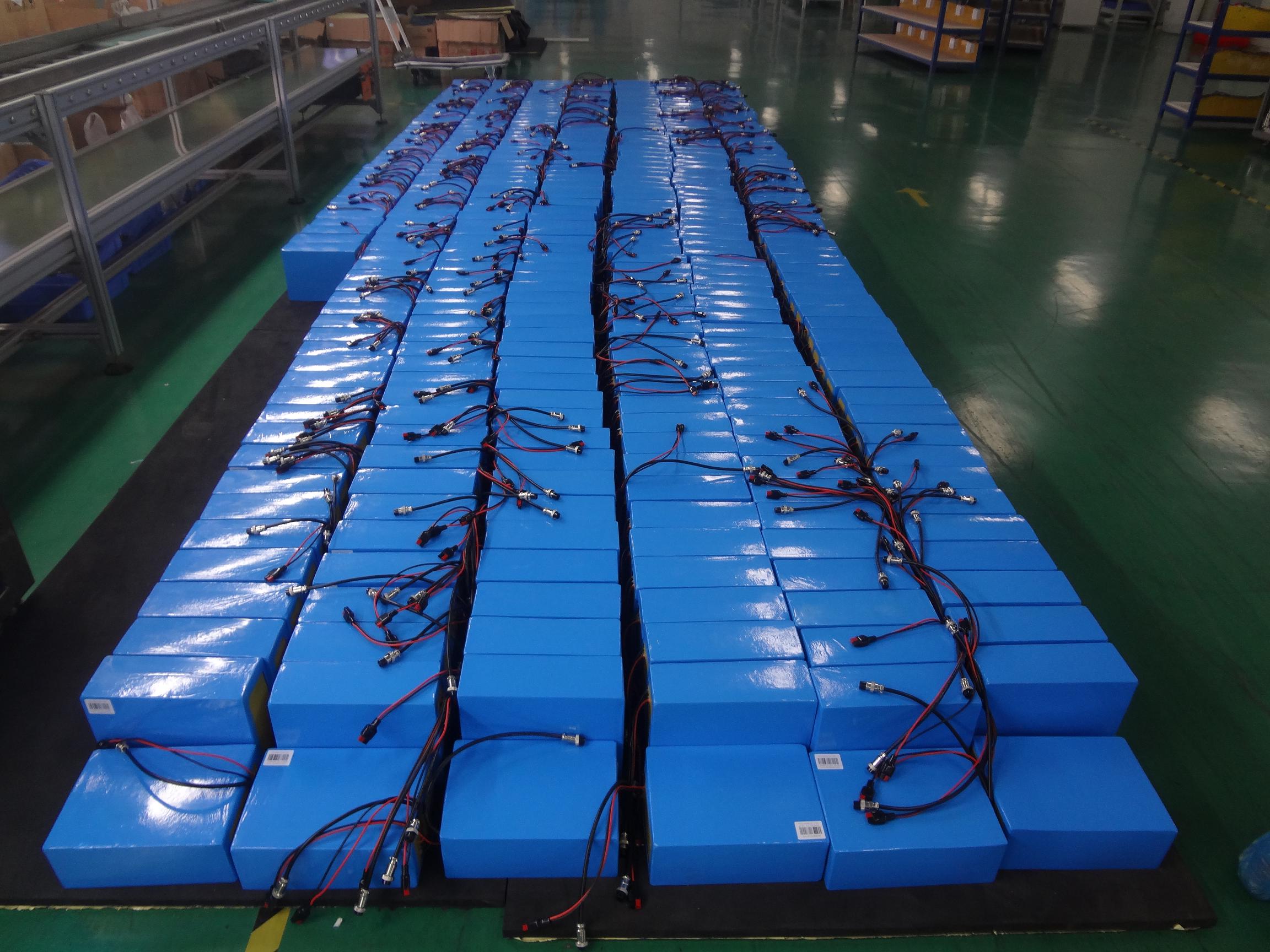

    Production line:


    Mass production :
