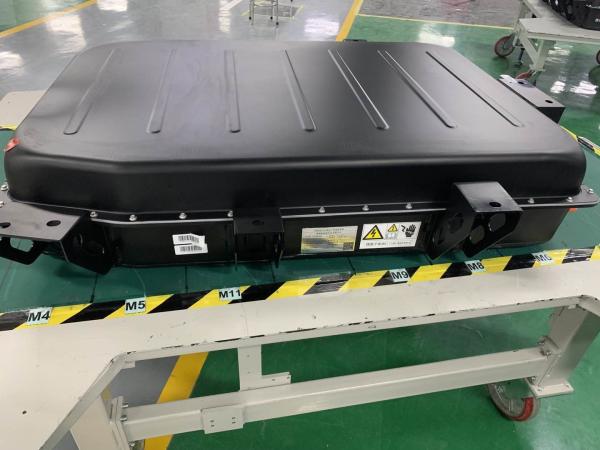

    328V128Ah NMC Special Vehicle Battery With 32Ah VDA Module and High Energy For Electric Logistic Car

    Ask Lasest Price
    Brand Name : SOUNDON
    Model Number : SD32812802
    Certification : UN38.3, ROHS,msds
    Price : Negotiation
    Payment Terms : T/T or L/ C
    Supply Ability : 30pcs/day
    Delivery Time : 25-30 days
    • Product Details
    • Company Profile

    328V128Ah NMC Special Vehicle Battery With 32Ah VDA Module and High Energy For Electric Logistic Car

    328V128Ah NMC Special Vehicle Battery With 32Ah VDA Module and High Energy For Electric Logistic Car


    specification :


    Parameter
    Battery cellBattery Cell TypeSEPNi11217127P-32Ah
    Battery MaterialNMC
    Rate Voltage(V)3.65
    Rated Capacity(Ah)32
    Dimension(mm)Length(126±5)×W(216±5)×T(11.5±2.0)
    weight(kg)0.545±0.015
    Battery ModuleBattery Cell TypeSEPNi11217127P-4P1S
    Confiuration3.65V128Ah
    BMSRated Input Voltage6-36V
    Rated Input Current3A
    Mounting PositionBattery Pack
    Dimension(mm)Main Plate: 359*126*28 ;Slave Plate: 255*126*28
    Weigh(kg)Main Plate: 1.265 ;Slave Plate: 0.915
    Battery PackType328V128AH
    Battery TypeHigh Energy Density
    ApplicationElectric Commercial Vehicle
    Mounting Positionothers
    Vehicle Weigh(t)<3.5
    Battery Pack Configuration4 P 90 S
    Cooling MethodNatural
    Rated Voltage(V)328.5
    Rated Capacity(Ah)128
    Rated Energy(Wh)42048
    Charge Termination Voltage(V)378
    DisCharge Termination Voltage(V)270
    Battery Cell Charge Protection Voltage(V)4.2
    Battery Cell DisCharge Protection Voltage(V)3.0
    Charge Temperature Range(℃)-10~55
    DisCharge Temperature Range(℃)-20~55
    Max Continue Charge Current (A)25℃: 128 40℃: 128 50℃: 64 -20℃: 0
    Max Continue Discharge Current(A)25℃: 128 40℃: 128 50℃: 64 -20℃: 0
    Dimension(mm)1354*1110*264
    Weigh(kg)300

    32Ah Battery Module Specification


    Configuration

    Dimension(mm)

    Voltage(V)

    Capacity(Ah)

    Energy(KWh)

    Energy Density Wh/kg

    Group efficiency

    4P6S

    342.6*227*150

    21.9

    128

    2.803

    167

    77.9

    4P8S

    437.8*227*150

    29.2

    128

    3.737

    171.5

    80

    4P10S

    533*227*150

    36.5

    128

    4.672

    175.4

    81.8

    4P12S

    628.2*227*150

    43.8

    128

    5.606

    175.5

    81.9

    4P14S

    736.2*227*150

    51.1

    128

    6.541

    174.3

    81.3

    5P6S

    414*227*150

    21.9

    168

    3.504

    173.3

    80.8


    Application
