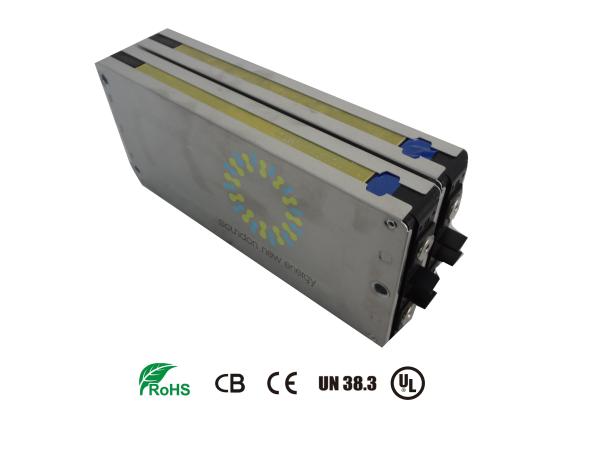

Energy Storage System Lifepo4 Lithium Battery 3.2V 100Ah With High
Capacity density
Specifications:
Battery cell :
Type | Parameters |
| The battery cell model | SEPNi7688190P-12.5Ah |
Bttery type | NCM material prismatic cells battery
|
The battery cell Single Capacity | 20Ah |
The battery cell Voltage | 3.2V |
The Battery cell weight | 270g |
The Battery cell density certificate | 140Wh/kg |
Impedance | <3.5mΩ |
Working Temperature
| -20℃~60℃ |
3.2V100AH Battery pack :
| Item | Parameter |
| Battery cell | SEPE80125256P-20Ah |
| Configuration | 5P1S) |
| Battery size(H*W*T) | 312.5× 132.6× 44(mm) |
| Capacity | 100Ah |
| Voltage | 3.2V |
| Weight | ≈2.9Kg |
| Battery module energy density | ≈110Wh/Kg |
Soundon LiFepo4 lithium battery feature :
1.Unique lithium battery of Lamination Technology with prismatic
case
2) .specilist for Electric vehicle and Energy storage battery cells
in Lifepo4 , LI polymer with prismatic case
Lifepo4 battery models :
| Module | Capacity
(Ah) | Voltage (V) | Inner resistance
(mΩ) | Thickness Max(mm) | Width Max(mm) | Height Max(mm) | Energy Density (WH/KG) | Self discharge(RT 28d) | cyclelife
(RT 1C/1C) |
| SEPFe80125256P-20Ah | 20 | 3.2 | ≤3.5 | 8.0 | 125.0 | 256.0 | 134 | ＜5% | ≥3000 times |
| SEPFe90161227P-25Ah | 25 | 3.2 | ≤3.0 | 9.3 | 161.0 | 227.0 | 140 | ＜5% | ≥3000times |
| SEPFe11190316P-50Ah | 50 | 3.2 | ≤1.8 | 11.3 | 190.0 | 316.0 | 140 | ＜5% | ≥3000times |
| SEPFe12212268P-50Ah | 50 | 3.2 | ≤1.8 | 11.8 | 212.0 | 268.0 | 140 | ＜5% | ≥3000times |
3.Product certification : UN38.3,CB ,CE, Rohs ,UL certification
4.Company Quality Approvals : ISO9001,ISO14001,TS16949 quality system standard approved
Soundon Lifepo4 battery pack are mainly applied in :
Electric vehicle :e-cars, e-buses, e-trucks, fork lifts, e-scooters e- boat,
Off-highway Vehicles
Power and Storage applications:house storage power, digital ,off-grid solar energy ,wind energy
storage , Telecom based station and backup power supply
Soundon is a Professional lithium battery for E vehicle ,Energy
Storage system
Soundon can provide the whole battery pack solution for you
Soundon is professional lithium ion battery manufactory from
lithium battery cathod material to battery cells ,battery module
,battery pack ,final to finished battery pack ,all for those
factors are good for us to manager the quality and cost .
Company Quality System like :ISO9001,ISO14001,TS16949
.
