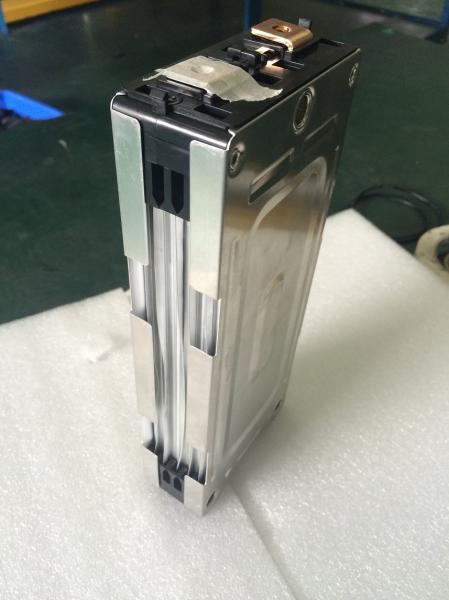

    3C Discharge Current 3.6V 75Ah NMC Battery , High Density Pouch Cell

    Ask Lasest Price
    Brand Name : Soundon
    Model Number : SEPNi8688190P-5P1S-3.6V75AH
    Certification : CE,ROHS,MSDS,CB
    Price : Negotiation
    Delivery Time : 20000 pcs/ day
    • Product Details
    • Company Profile

    3C Discharge Current 3.6V 75Ah NMC Battery , High Density Pouch Cell

    3.6V 62.5AhLithium Polymer Battery Pack With High Density Energy For E Trucks

    Specifications:


    battery cell modelSEPNi7688190P-12.5Ah

    Bttery type

    NCM material prismatic cells battery

    battery Single Capacity

    12.5Ah

    battery cell Rated Voltage

    3.6V

    Battery cell weight

    270g

    battery cell density certificate

    166.7Wh/kg

    Impedance

    <2.5mΩ

    Working Temperature


    -20℃~60℃

    Battery Module :

    Type

    Parameters


    Remark

    Battery model type

    EV--5P1S

    Configuration

    5P1S


    Modules size(H*W*T)

    232.5×97×42

    Modules Capacity

    62.5Ah

    Modules Voltage

    3.6V

    Modules weight

    1.5kg

    Modules density certificate

    138Wh/kg

    Working Temperature

    -20℃~60℃

    Battery cells configurate to the battery pack :


    ItemBattery module performance
    Cell modelSEPNi7688190-12.5Ah(NCM)SEPFe80125256-20Ah(LiFePO4)
    Capacity of cell battery(Ah)12.520
    Configuration4P1S5P1S3P1S4P1S5P1S
    Dimension mm(H*W*T)232.5×97×34232.5×97×42298.5*132.6*28298.5*132.6*36298.5*132.6*44
    Rated capacity (Ah)50Ah62.5Ah60Ah80Ah100Ah
    Rated voltage (V)3.63.63.23.23.2
    Energy density (Wh/Kg)137.4138102.7106.7110

    Electric Vehicles Li polymer battery pack list :


    ModuleVoltageCapacityApplicationBattery cells Type
    EV-7225072250electric carNCM
    EV-108200108200Electric passenger carNCM
    EV-314100313.2V100AhElectric carNCM
    EV-310125309.6V125AhElectric pure carNCM
    EV-38850388.852Electric cleaning vehicleNCM
    EV--367200367.2200Electric business busNCM
    EV--324100324100Electric Logistic VehicleNCM
    EV--108325108325Electric transport VehicleNCM

    APPLICATION :


    Electric vehicle :e-cars, e-buses, e-trucks, fork lifts, e-scooters e- boat, Off-highway Vehicles

    Power and Storage applications:house storage power, digital ,off-grid solar energy ,wind energy storage , Telecom based station and backup power supply

    .
