High energy density and lightweight Rechargerable Lithium Ion
Batteries ,3.6V32Ah For Electric Vehicle
Parameters
| Specification |
| Capacity | 32Ah |
| Voltage | 3.6V |
| Charge cut-off voltage | 4.20V±0.03V |
| Impedance | ≤ 2.5 mΩ |
| Standard charge and discharge current | 0.5C |
| max constant charge and discharge current | 1C |
| mas pluse charging current | 1.5C |
| mas pluse discharging current | 3C |
| Operating temperature | Charging :-10~45℃ |
| Discharging :-20~55℃ |
| Dimension | 11.5*126*216mm |
Battery cell Test data
1C Charge / Discharge 2500 cycles, Capacity ratio ≥80%
Discharge Curves of different currents
Discharge curves of different temperature
NCM battery cell list
The cell production is followed high and strict criteria in each
process, ensure it with five advantage: high safety , Good
consistency, high energy density ,longer cycle life ,low resistance
our battery cell are mainly applied in pure electric passenger
cars, pure electric commercial vehicles, pure electric special
vehicles, smart grids, wind photovoltaic energy storage, large UPS,
base stations, high-end electric tools and other fields
| Model | Voltage (V) | Capacity (Ah) | Impedance(mΩ) | Dimention |
| Length (mm) | Width (mm) | Thickness (mm) |
| SEPNi8688190P -13.5Ah | 3.65 | 13.5 | ≤3.0 | 194±2 | 91±2 | 8.3±0.4 |
| SEPNi11100302P-42Ah | 3.65 | 40 | ≤2.5 | 301±2 | 99±2 | 10.9±0.4 |
| SEPNi11164227P-45Ah | 3.65 | 45 | ≤2.5 | 226±2 | 163±2 | 10.8±0.4 |
| SEPNi11217127P-32Ah | 3.65 | 32 | ≤2.5 | 125±2 | 215±2 | 11.1±0.4 |
| SEPNi54190140P-10Ah | 3.65 | 10 | ≤1.5 | 141±2 | 191±2 | 5.2±0.3 |
Advanced intelligent workshop
1.All production line with high advanced facilities
2.The production mode of "robot +AVG+ three-dimensional warehouse"
with high intelligence, high digitalization and high automation at
the top end in the industry

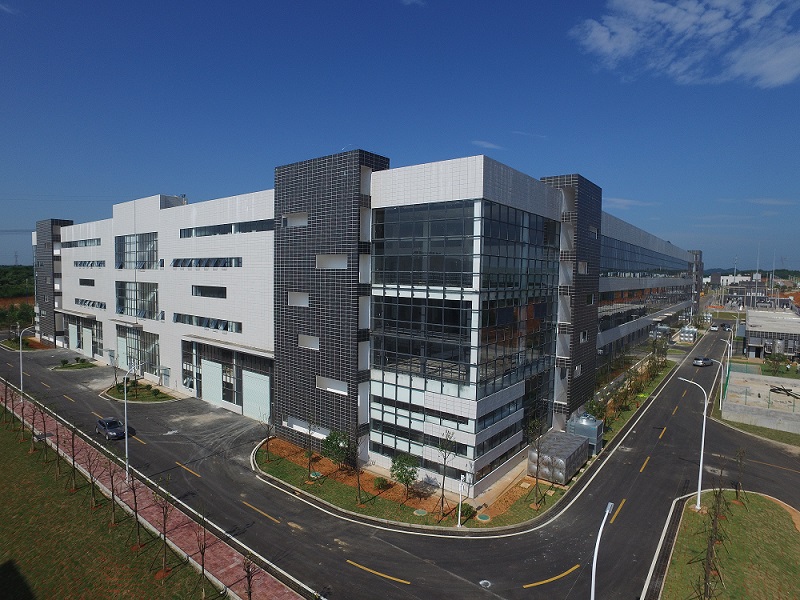

Lithium battery plant --Intelligent layout
1.Digital integration ecological layout
The company integrates international and domestic automation and
intelligent manufacturing industry resources, and proposes a
comprehensive solution for smart factories
2. Strict production conditions
company has strict production environment management, and has set
high standards for monitoring equipment and monitoring standards
for environmental temperature and humidity, cleanliness, dew point
temperature, oven and other regional.
