107.4Kwh 200A ESS Battery with IP20 Grade For Mobile emergency
Power Supply, Building UPS
Battery pack power supply parameter
Rate power : 107.4kWh
Nominal Voltage : 537.6V
Nominal Capacity :200Ah
Output Voltage Range: 470.4V～613.2V
Rate charging Current :200A
Rated Discharging Current:；200A
max charge current :300A
Self discharge(25℃,SOC50%) : ≤5%
SOC Estimation accuracy : ≤5%
Battery Balance : Passive equalizing
Protection Level: IP20
Cooling : Air cool
Battery system low voltage power: Rated power ≤134W
weight :1200kgs
dimension:650mm*1800mm*2100mm
Energy storage system function introduction :
1. Integrated , high integration, easy to design, construction,
commissioning and operation and maintenance;
2. Modular construction, easy using, quickly installation ,
convenient operation and maintenance;
3. Intelligent monitoring, real-time online, intelligent monitoring
and early warning, the system is safe and reliable;
4. Standardized expansion, strong scalability, can be combined with
standard modules to expand the capacity of different products;
Application :
New energy generation, small micro-grid, industrial and commercial
energy storage and other fields, and can achieve "peak load
filling" and "emergency response." "Safety" and so on .
ESS PRODUCT LIST
| No. | Model | Voltage (V) | Capacity (Ah) | Length(mm) | Width (mm) | Thickness (mm) | Applications |
| 1 | ES-13-1230-03 | 12 | 30 | 174 | 166 | 124 | Solar street light |
| 2 | ES-14-12100 | 12 | 100 | 330 | 200 | 210 | Back up power supply |
| 3 | ES-002-2450- | 24 | 50 | 690 | 500 | 50 | Solar street light Storage |
| 4 | ES-003-2480-01 | 24 | 80 | 327 | 306 | 140 | Solar street light Storage |
| 5 | SDDX-48V10Ah(1U) | 48 | 10 | 440 | 400 | 44 | Telecom back up power |
| 6 | SDDX-48V20Ah(2U) | 48 | 10 | 440 | 400 | 88 | Telecom back up power |
| 7 | ES-002-4850-01(3U) | 48 | 50 | 440 | 400 | 133 | Telecom back up power |
| 8 | ES-001-4860-001 | 48 | 60 | 470 | 135 | 300 | UPS power bank |
| 9 | SDDX-48V75Ah(4U) | 48 | 75 | 440 | 400 | 177.6 | Telecom back up power |
| 10 | ES-005-48V100Ah-02 | 48 | 100 | 482 | 400 | 222 | Telecom back up power |
| 11 | ES-001-48160-001 | 48 | 160 | 671 | 216 | 314 | Home energy storage system |
| 12 | ES-002-48200-01 | 48 | 200 | 1300 | 428 | 136 | Telecom Base Station |
| 13 | ES-008-48V300AH-01 | 48 | 300 | 800 | 460 | 290 | Back up power supply |
| 14 | ES-002-48600 | 48 | 600 | 2000 | 700 | 600 | solar electric system |
| 15 | ES-002-9610-01(1U) | 96 | 10 | 400 | 428 | 89 | Telecom back up power |
| 16 | ES-SC-220-0200-A | 220 | 200 | 800 | 600 | 2000 | Power Station Supply |
| 17 | ES-SC-220-400-A | 220 | 400 | 600 | 800 | 2200 | Power Station Supply |
| 18 | ES-001-640280-01 | 640 | 280 | 600 | 4800 | 2000 | Intelligent building power supply |
| 19 | ES-001-729420-01 | 729 | 420 | 2340 | 550 | 210 | Solar energy storage charge station |
Soundon New Energy Introduction
Soundon New Energy is invested by Sound Group and stock jointed by
Sound Environment(SZ000826). It’s an enterprise engage in
technology innovation, product design and marketing for battery
cathode material and high capacity lithium-ion battery.
Our products are widely used in public lives, military affairs,
aviation and transportation, energy, communication and information
etc. Soundon has lithium-ion cathode material department,
lithium-ion battery department and electric vehicle department,
each department is in independent operation.
Soundon New Energy has the ability of production 30,000 tons
NCM&LIFEPO4 battery Cathode material , 18Gwh high capacity
li-ion battery every year.

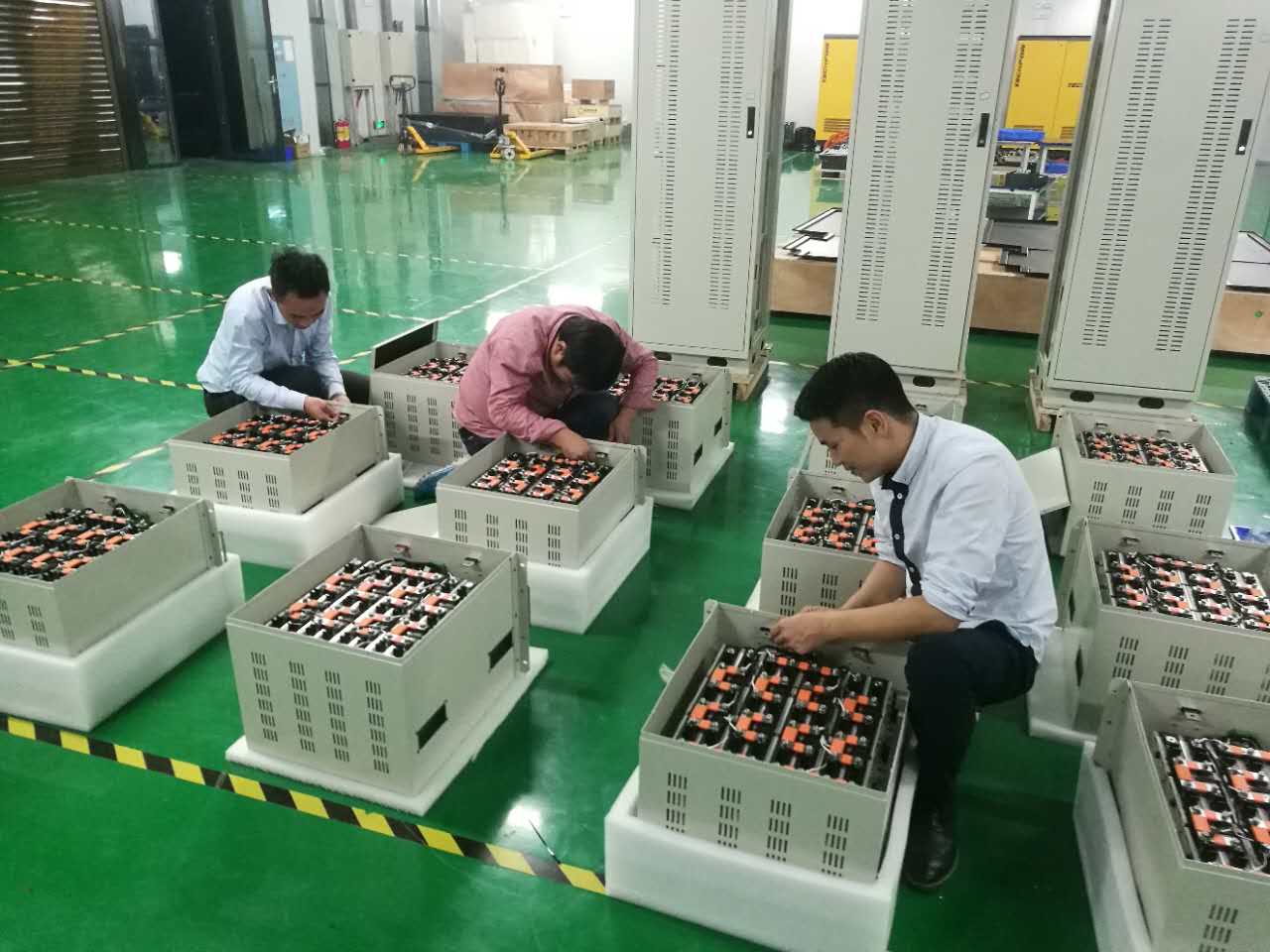

Soundon Industrial park
Soundon New Energy industrial park now covers 200,000 ㎡,with
R&D building 100,000 ㎡. We have completely automatic product
lines for li-ion batteries, and all the equipment are provided by
the world famous suppliers. Soundon has passed ISO9000-2008 certification and TS16949.
