    High Rate Discharge Electric motorcycle Battery 60V 25Ah e scooter Swappable battery

    Ask Lasest Price
    Brand Name : SOUNDON
    Model Number : SD-EB-6025
    Certification : CE,CB,UN38.3,MSDS
    Price : Negotiable
    Supply Ability : 500 unite / day
    Delivery Time : sample within 7-10days ,mass production for 20-25days
    • Product Details
    • Company Profile

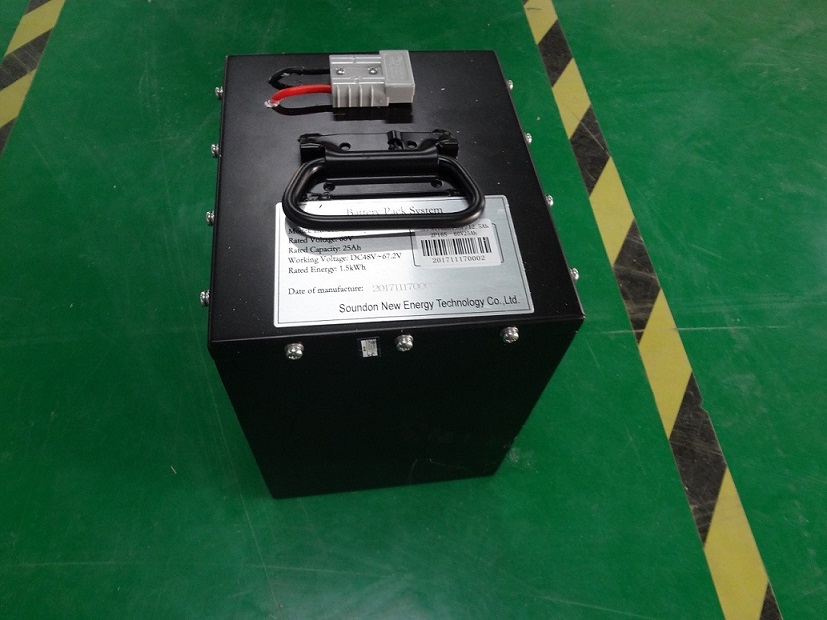

    High Rate Discharge Electric motorcycle Battery 60V 25Ah e scooter Swappable battery


    High Rate Discharge Electirc Car Battery 60V 25Ah Lifepo4 with AIAR certificate , for electric motorcycle ,tricycle ,richshaw


    Specifications:


    ItemParameter

    Voltage Range

    48V---67.2V

    Battery system whole energy(KWh) 23±2℃,1/3C

    Rated:1.5kWh

    Battery system whole capacity 23±2℃,1/3C

    Rated:25Ah

    SingelCell model

    SEPNi7688190-12.5Ah

    Cell configuration

    2P16S

    Battery system working temperature

    discharge -20~45℃,charge 0~45℃

    Battery surrounding environment relative humidity

    10%~85%

    Battery storage temperature

    -20~45℃

    Battery standard charging current(23+/-2℃)

    5A

    Battery Max charging current(23+/-2℃)

    12.5A

    Battery standard discharging current(23+/-2℃)

    12.5A

    Battery continuous discharging current(23+/-2℃)(23+/-2℃)

    20A

    Battery system insulation resistance testing value

    ≤200mΩ

    Waterproof grade of battery case

    IP54

    Battery system waterproof grade

    IP54
    Cooling systemAir cool

    Battery cell Models;
    Soundon New Energy are mainly produce NCM battery for electric vehicle ,energy storage battery ,the battery cell models as below :
    ModelVoltage (V)Capacity (Ah)Impedance(mΩ)/DimentionEnergy DensityType
    Length (mm)Width (mm)Thickness (mm)Mass Energy Density (Wh/kg)Volume Energy Density (Wh/L)
    SEPNi8688190P-15Ah3.6515≤3.5194±291±28.3±0.4≥200≥375NCM
    SEPNi8688190P-17Ah3.6517≤3.5194±291±28.4±0.4≥220≥425NCM
    SEPNi75161227P-30Ah3.6530≤2.5226±2160±27.4±0.4≥220≥420NCM
    SEPNi11100302P-40Ah3.6540≤2.5301±299±210.9±0.4≥220≥435NCM
    SEPNi11164227P-45Ah3.6545≤2.5226±2163±210.8±0.4≥210≥405NCM
    SEPNi11217127P-32Ah3.6532≤2.5125±2215±211.1±0.4≥220≥385NCM
    SEPNi54190140P-10Ah3.6510≤1.5141±2191±25.2±0.3≥130≥250NCM

    .


    Appliction :


    electric scooter battery :48V15AH ,48V20Ah,48V25Ah,48V40Ah,48V50Ah


    electric tricycle ,electric rickshaw ,golf cart :60V20Ah ,60V25Ah ,72V30AH, 72V40AH,72V75AH



    Packing
